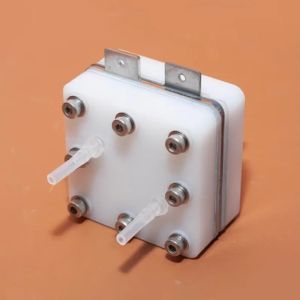

btnx 1.6x1.6mm hydrogen fuel cell 316 stainless steel flow channel plate FCS-S-GS-1.6 9R3H1

Feature:1.Effective Active Area 1.6 x 1.6 mm2.One-piece Forming 316L Stainless Steel Collector Plate - Flow Channel Plate3.S-shaped Seal for Flow Channels, Acid and Alkali Resistant4.Compatible with Metal Felt Electrodes of 0.1~3 mm Thickness (Optional Different Thickness Electrode Frame)5.Silicone Rubber Flat Seal, Full Plane Locking to Prevent Penetration6.Optional Gas Diffusion Electrolyte Pool, Supports Three-electrode Testing7.Can be Assembled with Membrane or MEA Membrane Electrode8.Quick Connect Type Design, 2 mm Inner Diameter Soft Tube Quick ConnectSpecification:Effective Active Area: 1.6 x 1.6MMElectrode Type: Fibrous Felt, Foam Felt, Carbon PaperElectrode Frame Material: SGElectrode Frame Thickness: 0.5/1.0MMElectrode Installation: Pressure Bonding TypeFlow Channel Plate: Stainless SteelFlow Channel Form: S-shaped, Flow Channel Width 1mmCollector Permeability: N/ASeal Form: Flat Seal, Silicone RubberConnector: Connector Inner Diameter 2mm, Pagoda ConnectorMaximum Size:60x70mmTemperature Control Heating: SupportTypical Slot Voltage 1.8~15 VApplication Field Hydrogen Fuel Cell, CO2 Capture, Flow Electrolyzer
