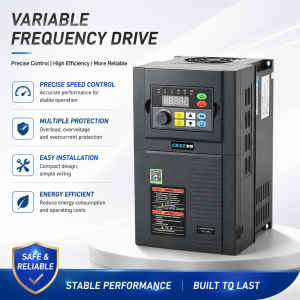

3 Phase 220V 11KW VFD Heavy-duty Frequency Inverter Variable Frequency Drive 15hp Economical Convert

3 Phase 220V 11KW VFD Heavy-duty Frequency Inverter Variable Frequency Drive 15hp Economical Converter Inverter AC Motor Speed ControllerTechnical Index and Specificatio:F380 VFDInput :Voltage : 3PH AC220-240V;50/60HZOutput:Voltage : 3PH AC0-240VControl Mode : V/F controlProtective Function : Overcurrent, overvoltage, undervoltage, module fault, electric thermal relay, overheat, short circuit,default phase of input and output, motor parameter adjustment abnormality, internal memory fault, etc.Control Mode :V/F controlProtective Function : Overcurrent, overvoltage, undervoltage, module fault, electric thermal relay, overheat, short circuit, default phase of input and output, motor parameter adjustment abnormality, internal memory fault, etc.Logic input: 5 X1-X5(function: positive and negative rotation, point, multi-speed, terminal UP/DOWN frequency given),Analog input:AVI:0-10V(voltage signal, used for frequency setting)ACI:/0-20mA(current signal, used for frequency setting)Analog output: A01:0-10V (voltage signal, operating frequency, output current indication, etc.)Relay output: TA/TB/TC - normally open, normally closedControl characteristics:V/F control, no PG vector control (sensorless vector control, open loop vector control)Built-in PID control (user pressure control, constant output pressure)no braking unitSafety Precaution:1. Before wring, please make sure that the input power is off.2. The wring work should be operated by the professional electrical engineer.3. The grounding terminals must be connected with the ground.4. Having paused circuit wiring emergently, please make sure that the check is effective.5. Do not connect the output wire of the inverter with the shell, and pay attention that theoutput wire should not be short-circuited.6. Please check whether the voltage of the AC main circuit power is consistent with the rated voltage of the inverter.7. Do not do the voltage withstand test on the inverter.8. Please connect the brake resistor according to the wiring diagram.9. Do not connect the power to the U, V, W output terminals.10. Do not connect the contactor with the output circuit.
