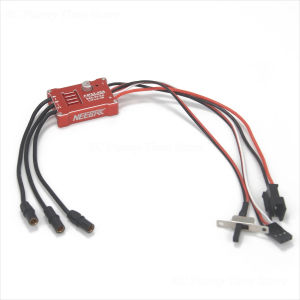

NEEBRC 2322 2600KV 3500KV Outrunner Brushless Motor AM32 45A Metal ESC for 1/12 RC Crawler Car MN99S MN168 MN78 MN82 Upgrade Kit

NEEBRC 2322 2600KV 3500KV Outrunner Brushless Motor AM32 45A Metal ESC for 1/12 RC Crawler Car MN99S MN168 MN78 MN82 Upgrade Kit Features: Perfectly fit metal and original gearbox, 14X14mm aperture, no need to expand the gearboxSmaller size, stronger powerNo need to polish the bottom shell or car shell during installationAfter modification, low-speed torque compensation, better linearity, easy to climb Specification:Applicable vehicle models: MN82 MN99S MN168 MN78 Product: 2322 3500KV external climbing motor Rated voltage: 7.4[VDC] 1-3S No-load current: ≤1.3ANo-load speed: 26000±5%[rpm]Motor internal resistance (mQ) (ambient temperature: 25 ° C): 42mΩ±3%Number of extreme slots：12N14PKV： 3500KV Weight：32.5gDirection: CCW/CW (viewed from the output shaft end)Number of gear teeth: 10TProduct: 2322 2600KV external climbing motor Using voltage range: 5.5-9V Rated voltage: 7.2[VDC]No-load current: 1200 [mA] maxNo-load speed: 19000±10%[rpm]Load torque: 100 [gf.cm]Load speed: 17000+10% [rpm]Direction: CCW/CW (viewed from the output shaft end)Insulation grade: Class BAxial play: 0.3 [mm] maxNumber of gear teeth: 10TFeatures:1-Simulated FOC,extremely excellent low-speed linearity and powerful low-speed torque2-Parameter adjusters and software can be used to adjust and adapt to various types of motors3-Low internal resistance Mos tube, strong impact resistance4-Waterproof treatmentNew AM32 45A ESC Specification:Voltage:7.4-11.1VLipo:2-3SBEC Output:5V/2ABattery Connector:SM3.0 Plug/T PlugContinuous/Peak Current:45A/260AMotor Type: 2322/2204/2205 Outer rotor motorsCompatible Vehicles：1：18/1：12 Climbing/Off Road VehicleDimensions: 32.525.59.5mmCase Material: CNC Metal CaseNEEBRC 21g servo Specification:Features:High performance digital standardLow noise and long service lifeSmall volume and large torqueSuit for RC car boat helicopter modelSpecifications:Item name: NEEBRC NB-S007MQuantity: 1pcsOperating Voltage : 4.8~6.0V DCMax. Torque : 9kgf·cmNo Load Speed : 4.8V≤0.10sec/60°; 6.0V≤0.12sec/60°Stall Current:4.8V≦1500mA;6.0V≦1800mAConsumption Current* (No Load):4.8V ≦200mA ;6.0V≦210mAMax. Operating Travel Angle:180°±10°(1000~2000μs)Dead Band Width: ≤ 1usMechanical Limit Angle: 360°Communication Interface: PWMMotor Type: Core motorCase Material: ABSGear Set Material : Metal gearHorn Gear Spline: 25T/Φ5.77Weight: 20.7 gSize: 29.6 × 13.2 × 40mmLength of Connector cable: JR 250±5mm (exposed without plug)MN 2CH Receiver Specifications :Channel:2CHRF range: 2.4GHzReceiver Voltage Range: 4.8-10VWeight: 6gFit for 1/12 MN Model MN82 MN82S MN78 New MN99S MN111 MN86 MN128 2Channel Transmitter
