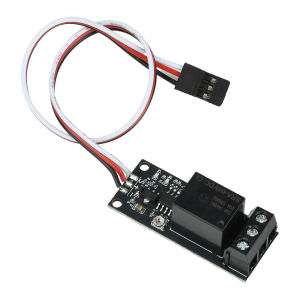

diymore | PWM Electronic Switch Relay RC Model Aircraft/Car/Boat Controller Adjustable Delay Duration 5-18V Navigation Light Control

Features1. Supports 5-18V input, compatible with various model equipment needs2. Precisely controls navigation light switching for stability and reliability3. Customizable delay duration to meet diverse application requirements4. Utilizes high-quality relays ensuring safe operation under heavy loads5. Wide application range for controlling power on/off of various electrical devicesParameterOperating Voltage: 5-18VPWM Recognition Range: 800μs-2200μsAdjustable Delay-on-Close Duration: 200ms-30000msRelay Specifications: DC14V/20A; AC125V/20AInterface Description:3P Servo Cable:White: PWM signal line, recognizes pulse widths 800μs-2200μs. Relay engages when PWM pulse width changes from 1700μs; disengages otherwise.Red: Module power supply +, voltage range 5-18VBlack: Ground (negative terminal)Relay Interface Terminals:COM: Common terminal, typically connected to control signal inputNO: Normally Open output; opens from COM terminal when relay is energizedNC: Normally Closed output; closes to COM terminal when relay is energizedPackage includeRC Switch1Heat Dissipation Film1
