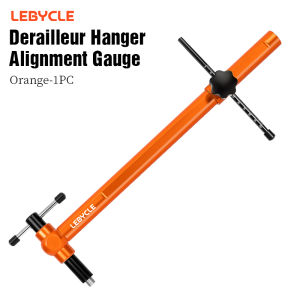

LEBYCLE | LEBYCLE Bicycle Derailleur Hanger Calibration Tool Bike Frame Tail Hook Straightener Tool Bike Derailleur Hanger Alignment Tool

LEBYCLE MTB Road Bike Hook Aligner Derailleur Aligner Bike Tail Hook 360° Rotation Alignment Calibration Tool Repair ToolDerailleur Hanger Alignment GaugeDesigned specifically for correcting derailleur hanger deformation to ensure precise adjustment and smooth operation of the rear derailleur system.Product Information ///Brand: LEBYCLEName: Derailleur Hanger Alignment GaugeModel: TS-HGT-01Material: Aluminum AlloyColor Options: Black/OrangeNet Weight: Approx. 380gGross Weight (with package): Approx. 536gProduct Dimensions: 39.5x15.5x5cmPackaged Dimensions: 45x15x4cmFunction: Corrects derailleur hanger deformation to resolve issues such as inaccurate rear derailleur alignment and abnormal shifting caused by a bent hanger.BeforeSevere deformation, unable to shift gearsAfterRestored shape, smooth shiftingBody StructureThe main structure adopts a segmented modular design, ensuring excellent axial stability.The front and rear reference surfaces are maintained at the same horizontal height, effectively preventing measurement deviations and significantly improving the accuracy of derailleur hanger alignment.Aluminum Alloy Measuring RodThe measuring rod is made of aluminum alloy with an anodized surface finish. The scale is laser-engraved for high visual clarity.Positioning Rotating RodThe positioning rotating rod is manufactured using centerless grinding, ensuring high standards of roundness, tolerance, and concentricity. This significantly enhances axial stability and measurement accuracy during rotation.Slider Measuring StrokeSlider measuring stroke of approx. 270 mm360° Rotational AlignmentRotate the handle to lock the derailleur hanger. Using the rotating rod as the axis, perform a 360° rotation to measure the distance between the rim and the derailleur hanger, then calibrate the hanger.
