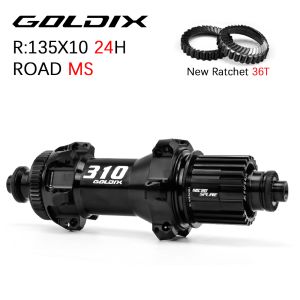

GOLDIX | GOLDIX R310 24H Center Lock Road Bike Hub 36T Ratchet HG XDR 11-12 Speed Lightweight Front Rear Disc Brake Bicycle Wheel Hub

GOLDIX R310 2027 Road Bike Hub 24H Straight Pull · Center Lock · New 36T Helical Ratchet

GOLDIX specializes in the development and manufacturing of bicycle hubs, offering a wide range of specifications for different wheel-building and drivetrain requirements.

Custom solutions for selected non-standard specifications are also available. For compatibility or customization questions, please contact us before ordering.

Product Specifications

Brand: GOLDIX Model: 2026 R310 Series Application: Road Bike Brake Type: Center Lock Disc Brake Spoke Type: Straight Pull Steel Spokes Spoke Holes: 24H Front / 24H Rear Freehub Options: ROAD  HGR / XDR / MSR Ratchet System: New 36T Helical Ratchet

Front Hub Spacing: 100 × 9mm 100 × 12mm

Rear Hub Spacing: 135 × 10mm 142 × 12mm

Bearing Configuration

Front Hub: 6902 × 2

Rear Hub: Hub Shell: 6902 × 2 Freehub Body: 6802 × 2

Technical Specifications

Maximum Single-Spoke Tension: 2500N Water & Dust Protection Rating: IP42–IP53 Ratchet Tooth Count: 36T Ratchet Type: Helical Engagement Ratchet

Freehub Selection

Please confirm your cassette interface and drivetrain specification before purchasing.

HG For compatible HG-type cassettes.

XDR For compatible XDR-type cassettes.

MS For compatible MS-type cassettes.

Important: HGR, XDR and MSR use different cassette interfaces and are not interchangeable. Please compare your original freehub and cassette interface carefully before ordering.

New 36T Helical Ratchet System

The new GOLDIX R310 series features a comprehensive upgrade to the ratchet engagement structure, contact area and surface treatment process.

The optimized system is designed to improve:

Engagement stability Load distribution Power transmission Durability Pedaling response Long-term reliability Approx. 20% Larger Engagement Area

With the same ratchet tooth count and similar overall weight, the new structure provides an approximately 20% larger effective engagement area compared with the previous design.

The increased contact area helps distribute pedaling forces across a wider surface, improving the load-bearing capability of the ratchet engagement surfaces and providing more stable power transmission.

Improved Engagement Stability

A larger contact area provides greater engagement redundancy between the two ratchet rings.

This helps maintain stable contact under changing pedaling loads and reduces concentrated stress on individual engagement surfaces.

The result is more consistent and reliable power transfer.

Helical Engagement Design

The optimized helical tooth profile helps guide the two ratchet rings into engagement more smoothly and accurately.

Advantages include:

Faster engagement response Reduced rotational free play More direct power transfer Smoother engagement Improved load distribution Greater engagement stability 24H Straight-Pull Design

The R310 uses a 24H straight-pull spoke configuration for both the front and rear hubs.

Please refer to the product images for actual weight information.

Due to differences between production batches and manual measurement, the actual product weight may vary by approximately ±10g. By placing an order, you acknowledge and accept this normal weight tolerance.
