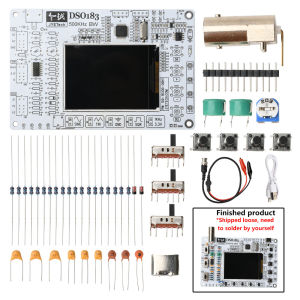

DSO183 5V DC Digital Oscilloscope DIY Kit 0–500 kHz Oscilloscope Electronics Construction Soldering Kit Type-C Connector

Product Features:1. Single-board design: A compact, integrated structure that is easy to install, highly stable and suitable for a wide range of experimental environments2. Built-in signal generator: Integrates multiple waveform output functions, including sine and triangle waves, to meet diverse testing requirements3. Waveform storage and recall: Supports waveform saving and quick recall, facilitating comparison, analysis and reuse4. 500 kHz high bandwidth: Offers high-frequency response capability to accurately capture the details of complex signals5. The ideal tool for electronics enthusiasts: Simple to operate and packed with powerful features, it is a valuable aid for learning electronics and exploring the world of circuitsProduct Specifications:Bandwidth: 500 kHzADC resolution: 12-bitReal-time sampling rate: 1.5 MspsWaveform buffer length: 1024 pointsVertical sensitivity range: 10 mV/division – 5 V/divisionInput impedance: 1 MΩMaximum input voltage: 50 VpkCoupling modes: DC, AC, GNDHorizontal time base range: 1 µs/division – 500 s/divisionTrigger modes: Auto, Normal, SingleTrigger edge: 1 µs/division – 500 s/divisionPower supply: 5 V DC (powered via USB [Type-C port])Current consumption: Dimensions: 118 × 76 × 12 mmPackage contents:List 1: DIY kit × 1List 1: Single shell × 1
