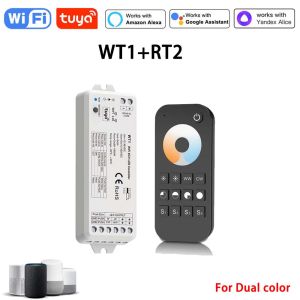

Tuya WIFI CCT LED Strip Dimmer Switch 12V Wireless 2.4G RF WW CW Controller Work with Smart Life Google Assistant 2 Channel WT1

Note:1. no need the gateway,connect wifi directly. 2. R12 For CCT Dual white color remote.     the remote all need work with led controller,can't work alone.Brand:SKYDANCEModel: WT1Type:Wifi 2CH Led Controller,universal for Single color/Dual colorApp:Smart LifeFeatures ● Used for control single color or Dual color temperature LED strip.● DC power socket input and 2 channel constant voltage output.● Tuya APP cloud control, support on/off, color temperature and brightness adjust, delay turn on/off light,timer run, scene and music play function.● Voice control, support ECHO and TmallGenie smart speaker.● Match with RF 2.4G remote control optional.● User need set light type by press key before Tuya APP network connection and match RF remote of the same light type.● Each WT1 controller can also work as WiFi-RF converter, then use Tuya APP to control one or more RF LED controlleror RF LED dimming driver synchronously.● Connect with external push switch to achieve on/off and 0-100% dimming function.Technical Parameters: Input voltage: DC12V,24V,36VInput current: 10.5AOutput voltage: 2 x (12-36)VDCOutput current: 2CH,5A/CHOutput Power: 2 x (60-180)WOutput type: Constant voltageInput signal: Tuya APP + RF + Push DimControl distance: 30m(Barrier-free space)Dimming gray scale: 4096 (2^12) levelsDimming Range: 0～100％Dimming curve: LogarithmicPWM Frequency: 2000Hz (default)For 5050/5630/3528/Cob Led stripPack: according your choice
