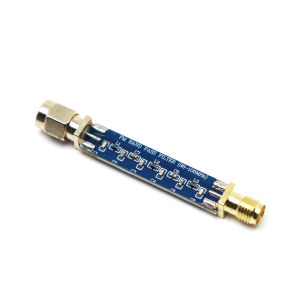

88-108MHz FM Bandpass Filter SMA BPF - LC RF Front-End Filter for FM Transmitters Receivers & Radio Broadcast Audio System

FM Bandpass LC Filter – 88–108MHz, SMA Interface,Product Description:This LC bandpass filter is designed for FM broadcast band (88–108MHz) applications. It features low insertion loss (1.6dB @ 98MHz), excellentout‑of‑band rejection (≥58dB @ 192MHz, ≥60dB @ 200MHz, ≥75dB @ 300MHz), and handles up to 4W (36dBm) of RF power. Housed with SMA connectors (SMA‑JE, SMA‑KE), it is ideal for FM transmitters, receivers, and RF front‑end filtering in communication systems.Specifications:Frequency Range: 88 – 108 MHzCenter Frequency: 98 MHzInsertion Loss: 1.6dB @ 98 MHzBandwidth: 88 – 108 MHz30dB Bandwidth: 72 – 150 MHzOut‑of‑Band Rejection:≥58dB @ 192MHz≥60dB @ 200MHz≥75dB @ 300MHzMax Power Handling: 4W (36dBm)Connectors: SMA‑JE, SMA‑KE (female / male as standard)Applications:FM broadcast transmitter output filteringReceiver front‑end band selectionRF interference suppression in FM bandTest equipment and lab experimentsAmateur radio (HAM) FM systems
