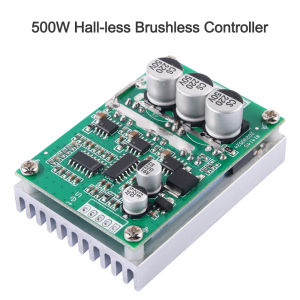

diymore | DC 12-36V 15A 500W Brushless Hall Free Motor Driver Board Motor Foward Reverse Speed Controller Control Switch Module

Features:1.Use high-quality materials with guaranteed quality2.The drive supports forward and reverse switching, with potentiometer speed regulation. The potentiometer can generally be used for 10-50K, and PWM 5V signal speed regulation can also be used3.Easy to use, the drive board comes with an 18mm thick heat sink4.Exquisite and compact appearance, with neatly arranged components5.Wide application rangeVoltage input: DC12-36VMaximum current: 15AMaximum power: 500WAttention:It is best to use adjustable power supply current limiting mode to test whether the actual no-load current is abnormal during drive testing, in order to avoid high-power burning of the drive during abnormal momentsDo not short circuit the output UVW three-phase, otherwise it will burn the drive. When using high-power, it depends on the actual heat generation size. If the heat generation is large, a fan should be added for forced air cooling to dissipate heatThe drive does not come with a socket or cable, and requires self soldering with an electric soldering iron. The forward and reverse switches and speed control potentiometers need to be prepared by oneself. The soldering iron must be well grounded to avoid damage to the drive caused by induced electricityPackage include:Motor drive board * 1
