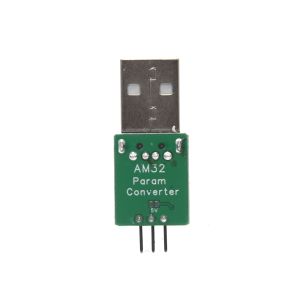

AM32 2-4S 40A ESC Brushless Speed Controller T/XT60 Plug 45A Programmer Adapter USB/Type-C Link for RC Crawler Car Tank Drone

AM32 2-4S 40A ESC Brushless Speed Controller T/XT60 Plug 45A Programmer Adapter USB/Type-C Link for RC Crawler Car Tank DroneInstructions for using the parameter adjuster :1. The 3P plug of the ESC, with the white signal wire corresponding to S and the black BEC negative wire corresponding to G, is plugged into the S and G of the tuner.2. Insert the tuner into the USB port of the computer (recommended for Windows 10), and plug in the battery for electrical tuning.3. In the FreelyRC product manual and tool library, download the parameter tuner driver (free installation on Win10) and the parameter tuning software package Esc_Cnfig_Tool_1.82 (simply unzip and do not need to install).4. After ensuring that the tuner driver is working properly (CH340 serial port device is recognized in the device manager), open the unpacked tuner software folder and run "serialPortConnector. exe"5. Operate the software in the order shown in the figure belowStep 2: Select the COM number corresponding to the tuner from the drop-down menu.Note: This COM slogan is different for each computer, so you need to choose the COM port of the corresponding tuner device on your own computer.6. Click the "Connect" button, and a "M1" button will appear in the software interface. Click on "M1".7. Start parameter tuning (Example: For bidirectional vehicle use, enable FOC)8. Press Save Settings to save, then unplug the ESC.Description:A new 32-bit ESC product, with a super mini size, very suitable for compact installation, it is a driving tool for various small model airplane brushless motors.Selected low-power MOS tube with layout placed on the same side for convenient heat dissipation and strong power.Mini size and high power, it is the preferred power for small aircraft, crawler, climbing vehicles.Integrates the BEC module (5V2A), adds overcurrent copper bars, adds thermal conductive silicone sheets, and takes all performance to a higher level.Supports mainstream control signals such as DSHOT and PWM, with linear at low speeds, violent at high speeds, and smooth speed regulation. It uses AM32 open-source firmware, which can be freely adjusted. It supports bidirectional operation, adjustable drag braking, sine start, and other functions, and fast forward and reverse switching is very smooth.With a 470uF 35V capacitor to improve its working condition.Add low voltage protection function, improve low-speed linear performance.Specification:Item name: 32-bit ESCFirmware: AM32Master control: AT32Working voltage: 2-4S LipoMax current: 40ABEC: 5V2ASupport signal: PWM/DSHOT/Sine, etc.Applicable motor:Below the 22 seriesBoard size: 30x12mmWeight: about 4.6gUSB LinkFor AM32/BL32, connects the ESC to a computer for configuration or firmware upgrade.Portable and easy to use, simply connect the ESC signal plug, connect the USB cable to a computer, and install the VCP driver.AM32 firmware is specifically designed for AT32 ARM processors, for controlling brushless motors (BLDC). The firmware is designed to be safe, fast, with a smooth and rapid start, and linear throttle. It is suitable for various vehicle types and flight controllers.Specification:Item Name: AM32 ESC Param ConverterInterface: USB/Type-CProduct size: 41.50.8cm/2.51.130.78cmPackage size: 4.8831cmPackage List:1 * 40A AM32 ESC1 * Param Adapter
