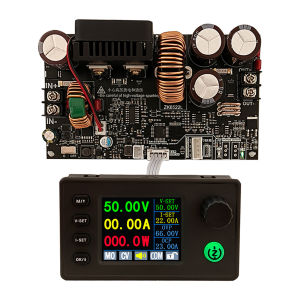

Aideepen | ZK-6522C DC6-75V 22A/1400W CNC Constant Current Step-down Module Constant Voltage Meter Color Screen Power Supply

Product feature:1. LCD display panel gold plating process to eliminate poor oxidation contact and prevent incomplete display after long-term use2. Independent silicone button for setting voltage or current, one click entry, one click exit, fast and simple, rejecting tedious3.1.8-inch ultra large color screen displays richer and more intuitive content, with simpler operation settings4. The standalone motherboard is flexible to use and supports stepless adjustment of current and voltage5. PCB immersion gold process to prevent button failure after long-term use, protect circuit board pads from oxidation, improve PCB conductivity, reduce line impedance and contact resistanceProduct Parameters:Input voltage: 6.0-75.00VOutput current: 0-22AOutput power: 0-1430WOutput voltage: 0.0-65.00VOutput voltage accuracy: ± 0.3%+3 words (calibratable)Output current accuracy: ± 0.5%+3 words (calibratable)Current resolution: 0.01AVoltage resolution: 0.01VData group storage: 11 groupsScreen size: 1.8-inch upgraded large screen with 36 * 29mm visible rangeOpening conditions for cooling fan: temperature>45 ° C or current>2A or power>30WSilicone buttons: 5Buzzer: YesProtection mechanism:Input undervoltage protection (LUP): adjustable from 5.5-64V, factory default value 5.5VOutput Overvoltage Protection (OUP): Adjustable from 1-66V, factory default value 66VOutput overcurrent protection (OCP): 0.01-23A adjustable, factory default value of 23AOutput Overpower Protection (OPP): 1-1450W adjustable, factory default value 1450WOver temperature protection (OTP): adjustable from 30-99 ℃, factory default value of 60 ℃Overtime protection (OHP): 1 minute -99 hours and 59 minutes, factory default turned offOvercapacity protection (OAH): 0.001-9999Ah, factory default offUltra Energy Protection (OPH): 0.001-4000KWh, factory default offNotes:1. Cannot input AC power, let alone connect to 220V mains power2. The maximum allowable input voltage is 75V, and overvoltage input or reverse polarity connection is not allowed3. The output cannot be completely guaranteed to prevent backflow. When connecting the battery, it is necessary to ensure that the output voltage of the power module is always higher than the battery voltage, or to connect a diode in series with the positive pole of the output for unidirectional conduction to prevent battery voltage backflow from burning out the power supply4. When connecting the output terminal to the battery, be careful not to reverse the positive and negative poles5. The product is a voltage reduction module, and the maximum output voltage is equal to the input voltage multiplied by 0.95-1VPacking ListVoltage reduction module * 1Header * 1Connection line * 1
