diymore | Ultrasonic Radar Scanner Electronic DIY Kit HXFB Graphical Programming Core Board Development 0-180 Degrees Servo Scanning

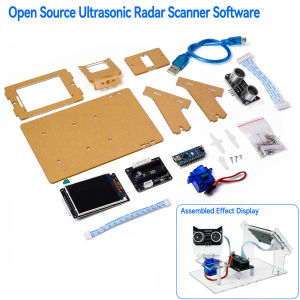

Product Features:1.0-180 ° servo scanning, accurately obtaining angles and distances2. Paired with drag and drop graphical programming software, exercise programming thinking3. Real time display of fan-shaped chart on LCD, with red dots for intuitive target calibration4. Support HXFB graphical programming, zero foundation programming5. Equipped with upper computer software, dynamic radar images are clear at a glanceKit Introduction:The HU-091 ultrasonic radar scanner kit is equipped with an ultrasonic module mounted on a servo motor, which realizes a 0-180 ° plane cyclic scanning. During the scanning process, the ultrasonic module emits ultrasonic waves, and the distance to the target object is calculated by receiving the echo. It can accurately detect targets within this angle range and display the measurement results on the LCD screen (the sector area is marked with a red dot to indicate targets within 2cm~3m). The visual effect is cool and full of technology. This kit supports the display of dynamic fan-shaped graphics on the upper computer (the upper computer software only supports Windows 64 bit system), and is also compatible with HXFB drag and drop graphical programming software. It is suitable for entry-level programming learning and can effectively exercise programming thinking and practical skills.Package informationKit Name: Ultrasonic Radar Scanner KitWorking voltage: USB DC5V power supplyMaximum operating current: approximately 150mAKit size: approximately 153 * 98mm (manual measurement may have slight errors)Features:DIY manual assembly, exercise hands-on abilityScan the 0-180 ° plane to obtain object angle and distance information, and display a fan-shaped image on the LCDPaired with drag and drop graphical programming software, exercise programming thinkingThe upper computer software provides dynamic radar sector maps, which convert ranging data into intuitive graphical interfaces in real-timeProduct List:HXFB graphical programming core board x 1Ultrasonic radar scanner base plate x 12.4-inch LCD display module x 1Ultrasonic module x 1Servo motor x 1Screw package x 14P cable x 18P cable x 1Shell x 1
