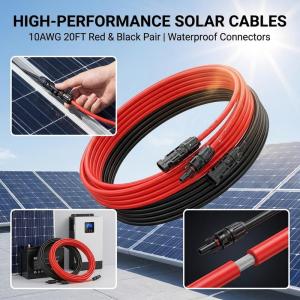

6.1Meters 4mm2/6mm2 Black/Red Solar Extension DC Cable 10AWG Wire with PV DC Connectors Used in Solar Panel System

Product Overview & Highlights Upgrade your solar power system with the 10AWG Solar Panel Extension Cable set. Each package contains a 6.1m (20FT) pair.

• Distinct red and black cables: Easily distinguish positive and negative polarities to prevent wiring errors.
• Waterproof plug and play connectors: Designed for quick, hassle-free installation and reliable outdoor performance against the elements.
• Thick insulation for safe use: Heavy-duty jacket protects the inner wires from physical damage, UV rays, and harsh weather conditions.

How to Use / Usage Steps

1. Identify the polarity of your system. Use the distinct red cable for the positive connection and the black cable for the negative connection.
2. Align the waterproof plug and play connectors of the extension cable with the corresponding connectors on your solar panel.
3. Push the male and female connectors firmly together until you hear a clear click, which confirms a secure and weather-tight connection.
4. Route the 6.1m (20FT) cables safely along your mounting structure toward your solar charge controller or inverter.
5. Connect the opposite ends of the cables safely to the input terminals of your charge controller, ensuring the connections are tightly secured.

Precautions / Important Notes

• Always cover your solar panels with an opaque material or disconnect the system from the battery before adjusting any wire connections to prevent electric shock.
• While the thick insulation and connectors are highly weather-resistant, do not leave the connection points permanently submerged in standing water.
• Ensure your solar setup does not exceed the maximum amperage and voltage ratings supported by a 10AWG wire gauge.
• Avoid pulling the cables by force or dragging them across sharp edges during installation to maintain the integrity of the thick insulation.

Purchase Notes / Order Information

• Package Contents: 1 x 10AWG Red Solar Cable (6.1m / 20FT) and 1 x 10AWG Black Solar Cable (6.1m / 20FT), both with pre-crimped connectors.
• Compatibility Check: Please verify that your existing solar panels use standard plug and play connectors and that 20FT is the correct length for your setup before ordering.
• Shipping: All orders are packed securely to protect the cables and connectors during transit.
• Customer Support: If you receive an incomplete package or need assistance with your solar setup, please reach out to our customer service through the store chat.
