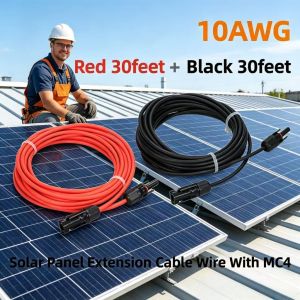

1Pair Black & Red 10/20/30 Feet Solar Panel Extension Cable Wire with MC4 Female and Male Connector 12AWG COD

FEATURE:Brand: PintechConductor: Stranded Tinned CopperInsulation: Halogen Free Crosslinked PolyolefinSheath: Halogen Free Crosslinked PolyolefinNominal Cross-Section:2.5, 4.0, 6.0m㎡Rated Temperature: -40~﹢90℃Rated Voltage DC: 1/1.8kVRated Voltage AC: 0.6kVRated Current: 33~57aWaterproof grade: ip67Weathering Resistance: Sun Res.Burning Behavior: (IEC60332-1)Black Cable M4 Connector: MaleRed Cable M4 Connector: FemaleTECHNOLOGY PARAMETERS 0f 10AWG(4mm2):Rated Temperature(℃) = -40~90Rated Votage(AC/DC（kV）) = 0.6~1.0/1.8Cable Core(NO.) = 1Cross-Section Area(mm2) = 6Cross-Section Area (AWG) = 10Diameter Of Wires/ Number(NO./mm) = 84/0.3Thickness Of The Insulation(mm) = ≥0.5Thickness Of The Sheath(mm) = ≥0.5Outer Dia.(mm) = 6.8-7.2Conductor Resistance（20℃）(Ω/km) = ≤3.39Voltage Test On Completed Cable(kV/min) = 6.5/5 No Breakdown
