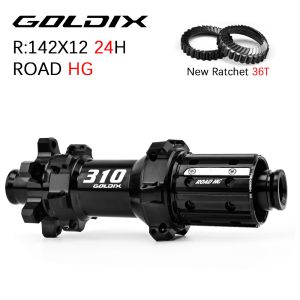

GOLDIX | GOLDIX R310 24H Road Bike Hub 36T Ratchet 6-Bolt Disc Brake HG XDR 10-12 Speed Lightweight Front Rear Bicycle Wheel Hub

GOLDIX R310 Road Bike Hub – New 36T Helical Ratchet System

GOLDIX specializes in the development and manufacturing of bicycle hubs and related components, offering multiple specifications for different wheel, axle and drivetrain configurations.

Customized solutions for selected non-standard specifications are also available. If you have any questions before ordering, please contact us.

Product Specifications

Brand: GOLDIX Model: 2026 R310 Series Application: Road / Gravel Bike Brake Type: 6-Bolt Disc Brake Spoke Type: Straight Pull Steel Spoke Spoke Holes: Front 24H / Rear 24H Ratchet System: New 36T Helical Ratchet Freehub Options: HG / XDR / MS

Front Hub Spacing: 100 × 9mm 100 × 12mm

Rear Hub Spacing: 135 × 10mm 142 × 12mm

Bearing Configuration

Front Hub: 6902 × 2

Rear Hub: Hub Shell: 6902 × 2 Freehub Body: 6802 × 2

Technical Data

Maximum Single-Spoke Tension: 2500N Water & Dust Protection: IP42–IP53 Ratchet: 36T Helical Engagement System

Weight Notice

Please refer to the product images for actual weight information.

Due to production batch differences and manual measurement, the actual product weight may vary by approximately ±10g. By placing an order, you acknowledge and accept this normal weight tolerance.

Freehub Body Selection

Please carefully confirm your cassette interface and drivetrain specification before ordering.

Different freehub body types are NOT interchangeable.

HG Freehub For compatible HG-type cassettes.

XDR Freehub For compatible XDR-type cassettes.

MS Freehub For compatible MS-type cassettes.

Please compare your original cassette/freehub interface with the product images before purchasing.

New 36T Helical Ratchet System

The new GOLDIX R310 series features a comprehensive upgrade to the ratchet engagement structure, engagement surface and surface treatment process.

The upgraded design is intended to improve:

Engagement stability Power transmission Durability Load distribution Engagement response Approximately 20% Larger Engagement Area

Compared with the previous structure using the same number of ratchet teeth, the new design increases the effective engagement area by approximately 20%.

A larger engagement surface helps distribute pedaling load over a wider contact area, reducing localized stress and improving transmission stability.

More Stable Power Transfer

The increased contact area provides greater engagement redundancy between the two ratchet rings.

This helps maintain stable engagement under changing pedaling loads and provides more reliable power transmission.

Helical Engagement Design

The optimized helical tooth profile helps guide the two ratchet rings into engagement more smoothly and precisely.

This design helps provide:

Faster engagement response Reduced rotational backlash More direct power transfer Smoother engagement Improved load distribution 24H Straight-Pull Design

The 24-hole straight-pull spoke configuration provides a clean and efficient wheel-building structure while balancing wheel stiffness and overall weight.

Designed for road and gravel bicycle applications.

Important Compatibility Notice

Before ordering, please confirm:

Front and rear axle spacing Axle diameter 24H spoke specification 6-Bolt rotor interface Freehub body type Cassette interface Drivetrain speed Wheel-building requirements

Incorrect specification selection may result in installation failure.

HG / XDR / MS are different freehub standards and cannot be used interchangeably.
