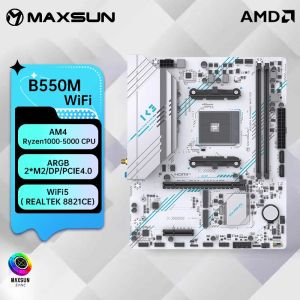

Wafu | MAXSUN B550M Motherboard Support AMD R7 5600 5700X DDR4 3200Mhz USB3.1 PCIE 4.0 AM4 ARGB WIFI5 BT4.2 B550M GAMING WIFI ICE

MAXSUN B550M Gaming WIFI ICE motherboardSize MicroATX(245200mm)CPU Supports AM4 slotsRYZEN1000-5000 CPU(does not support CPU overclocking technology)Ryzen+Radeon 1000-5000 CPU(does not support CPU overclocking technology)TDP: 95W(4+2+1 phase power supply)Chipset AMD 550Memory 2 DIMM DDR4 memory slotsUp to 64GB is supportedSupport dual channel memory technologySupport for 3200/2933/2666/2400/2133 MHZ/OC Memeroy frequency of memoryDisplay Based on the display function of integrated graphics processor, shared display memorytechnology is adopted1 HDMI1.4 interface, maximum support 4096x2160@30Hz resolution1 DP1.2 interface, maximum support 4096x2160@60Hz resolutionPcie 1 PCIEX16 4.0 slot1 PCIEX4 3.0 slotSupport AMD, NVIDIA, INTEL independent graphics cardSupports PCIE resizable bar technologyAudio Integrated REALTEK ALC897 sound card chipSupport simultaneous output of front and back channels (need to be set in HD audiocontroller)Rear audio interface: 1 rear on-board LINE IN interface, 1 rear on-board LINE OUT interface,and a rear on-board MIC_IN microphone interfaceF_AUDIO pins: 1 set of front microphone pins, 1 set of front audio output pins (these 2 pinsare F_Aduio pins)Network Integrated REALTEK 8111M NIC chip (10/100/1000Mbit)1 onboard RJ45 interfaceSupport network wake-upSupport PXE diskless, UEFI diskless boot1 onboard REALTEK 8821CE wireless card: Wi-Fi 5 and Bluetooth 4.2 supportStorage Two M.2 slots(M2_SSD1 supports 228 PCIE X4/X2 gen4-channel SSD/SATA drives)(M2_SSD2 supports 228 PCIE X4/X2 gen3-channel SSD)Two SATA3.0 interfacesUSB On-board rear interface:2 USB3.2 GEN1 interfaces4 USB2.0 portsPlate insert needle:2 USB2.0 pins with 9 pins1 (16 pin) USB3.2GEN1 pinIn board socket 1 24PIN motherboard ATX power supply interface1 8PIN motherboard ATX 12V power supply interface with 12V input4 / 102 sets of system fan pins, 1 set of CPU fan pins, 1 set of Pump pins (only CPU and SYSFAN2support smart fan speed control)1 set of front control panel pin (F_PANEL)HardwaremonitoringVoltage monitoringTemperature monitoringFan monitoringIntelligent fan speed control (supported by the motherboard, intelligent fan speed controlalso requires fan support)OperatingsystemSupports Windows10 64bit, Windows11 64bitSupports Ubuntu 64bitESD Protection Air discharge ± 8KV C level±6KV class BContact discharge ± 6KV C level± 3KV B class Test the whole machine under the condition of good groundingOthers 2 3pins support anti-freeze 5V ARGB lamp insertion pins1 4PIN 12V NRGB lamp insertion pin1 set of burn inserting needles1 group of clear CLR_CMOS pins1 set of DEBUG pins1 JP_USB1 power supply pin (can control whether the two USB2.0 LAN ports are powered ornot)Size Color box size: 28924565.5mmNet weight: 595.4gGross weight: 962.9gPlease note that importantly: In this product link, there are 3 parts. The motherboard part is the MAXSUN B550M GAMING WIFI ICE motherboard, which includes 5 options CPU. Please purchase carefully when placing an order. If you have any questions, please consult us and we will provide assistanceYour order consists of three parts1. Motherboard: B550M GAMING WIFI ICE motherboard2. RAMs：NO RAM/2X8GB DDR4 3200Mhz/2X16GB DDR4 3200Mhz (Used，95% or 99% new)3. CPU: NO CPU/R5 5500/R5 5600/R5 5600X/R7 5700X (Used，95% or 99% new)Note:1. The motherboard is brand new2. The CPU is used 95% or 99% new. If you mind, please do not place an order4. We will conduct testing before shipment, We will save the video and only products that pass the testing will be shipped，5. If you have any questions, please contact us and do not blindly trigger disputes. Thank you for your cooperation. 6.   Due to the recent significant increase in RAM prices，Please inquire if we have inventory when placing your order
