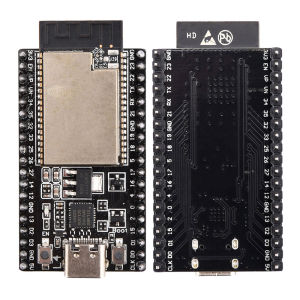

ESP32-DevKitC Wi-Fi Bluetooth Development Board ESP32 Development Module 38-Pin Type-C Interface

The following links may be utilised as required:Getting Started Guide:English version: http://esp-idf.readthedocs.io/en/latest/get-started/get-started-devkitc.htmlProduct Features:1. ESP32-DevKitC development board, featuring the mainstream Type-C interface in its new version. The base board supports ESP32 modules: ESP-32, ESP-32D, ESP-32U, and ESP32-WROVER.2. ESP32-DevKitC is an entry-level ESP32 development board. All ESP32 pins are brought out on the board for easy connection and use. It can be used to evaluate the entire ESP32 series of modules and chips, and can be easily plugged into a breadboard.3. The ESP32-DevKitC is a compact development board based on the ESP32 module, supporting Wi-Fi and Bluetooth functionality. The board features a rich array of peripherals, enabling users to easily implement product development.4. The on-board LDO is brought out, allowing it to supply power to external components. The ESP32-DevKitC organises peripheral interfaces into groups, aiding users in swift product development.5. The ESP32-DevKitC boasts exceptional RF performance, eliminating the need for users to consider RF or antenna design during application development. The board incorporates all essential system requirements; development commences simply by connecting a USB cable.Product Specifications:ESP32-DevKitC Development Board:ESP32-based moduleEN: Reset button.Boot: Download button. Press and hold the Boot button while briefly pressing the EN button (without releasing Boot) to enter ‘Firmware Download’ mode for serial port firmware installation.USB-to-UART bridge: Single-chip USB-UART bridge supporting up to 3 Mbps data transfer rates.Interface: Type-C port, serving as both the board's power supply and communication interface for connecting PCs to the ESP32-WROOM-32 module.Communication: 2.4 GHz Wi-Fi + BluetoothProcessor: High-performance Xtensa® 32-bit LX6 dual-core processor with ultra-low-power coprocessorMultiple peripherals: Optimised for power efficiency, RF performance, stability, versatility, and reliability, suitable for diverse applications and varying power consumption requirements.The development board supports any one of the following three power supply methods:Type-C port power supply (default)5V/GND pin power supply3V3/GND pin power supplyDimensions: 54.4 × 27.9 mmModule Specifications:ESP-32D:Chip: ESP32-D0WDSPI: Flash 32 Mbit, 3.3 VCrystal Oscillator: 40 MHzAntenna: On-board PCB antennaWi-Fi Protocol: 802.11 b/g/n (802.11n, speeds up to 150 Mbps)A-MPDU and A-MSDU aggregation, supporting 0.4 µs guard intervalOperating Channel Centre Frequency Range: 2412–2484 MHzBluetooth protocol: Compliant with BT v4.2 BR/EDR and BT LE standardsRF: NZIF receiver with –97 dBm sensitivity; Class-1, Class-2 and Class-3 transmitter; AFHIntegrated crystal oscillator: 40 MHz crystalIntegrated SPI flash1: 4 MBOperating voltage/supply voltage: 3.0 V to 3.6 VAverage operating current: 80 mAMinimum supply current: 500 mARecommended operating temperature range: –40 °C to +85 °CESP-32U:Chip: ESP32-D0WDSPI: Flash 32 Mbit, 3.3 VCrystal oscillator: 40 MHzAntenna: External antenna connector, requires external antennaWi-Fi Protocol: 802.11 b/g/n (802.11n, speeds up to 150 Mbps)A-MPDU and A-MSDU aggregation, supports 0.4 µs guard intervalOperating Channel Centre Frequency Range: 2412–2484 MHzBluetooth protocol: Compliant with BT v4.2 BR/EDR and BT LE standardsRF: NZIF receiver with –97 dBm sensitivity; Class-1, Class-2 and Class-3 transmitter; AFHIntegrated crystal oscillator: 40 MHz crystalIntegrated SPI flash1: 4 MBOperating voltage/supply voltage: 3.0 V to 3.6 VAverage operating current: 80 mAMinimum supply current: 500 mARecommended operating ambient temperature range: –40 °C to +85 °CESP32-WROVER:Supply voltage: 2.3 V to 3.6 VFrequency: 2.4 GHz to 2.5 GHzMounting type: SMTData rate: 150 MbpsProtocol: 802.11b/g/nStorage capacity: 4 MBWi-Fi protocol: 802.11 b/g/n (802.11n, speeds up to 150 Mbps)A-MPDU and A-MSDU aggregation, supporting 0.4 µs guard intervalOperating Channel Centre Frequency Range: 2412 ~ 2484 MHzBluetooth Protocol: Compliant with Bluetooth V4.2 BR/EDR and Bluetooth Low Energy standardsRF: NZIF receiver with –97 dBm sensitivityClass-1, Class-2 and Class-3 transmitters; AFHModule interfaces: SD card, UART, SPI, SDIO, I2C, LED PWM, motor PWM, I2S, IR, pulse counter, GPIO, capacitive touch sensor, ADC, DAC, TWAI® (compatible with ISO 11898-1 protocol, i.e. CAN specification 2.0)On-chip sensor: Hall sensorIntegrated Crystal Oscillator: 40 MHz crystal oscillatorIntegrated SPI Flash: 4 MBIntegrated PSRAM: 8 MBOperating Voltage/Supply Voltage: 2.3 V to 3.6 VOperating Current: Average: 80 mAMinimum Supply Current: 500 mARecommended Operating Ambient Temperature: –40 °C to 85 °CProduct Listing:Development Board*1
