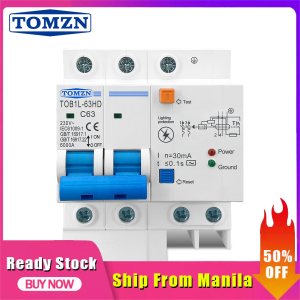

【Ready Stock】Residual Current Circuit Breaker Main switch with surge protector RCBO MCB with Lightning

Type : Residual Currentis_customized : YesModel Number : TOB1L-63HDGeneral1.Protection against overload and short-circuit currents.2.Protection against the effects of sinusoidal alternating earth fault currents.3.Protection against indirect contacts and additional protection against direct contacts.4.Protection against fire hazard caused by insulation faults5.Used in residential building.6.According to the type of instantaneo.us release classified as follows : type B(3-5)ln, type C(5-10)ln，type D(10-20)ln.Rated current: 6,10,16,20,25,32,40,50,63A■ Rated operating voltage: 230~250V AC■ Rated insulation voltage: 500V■ Lightning Protection Level: 3■ Rated residual operated current: 30mA■ Breaking capacity: 6kA■ Insulation impulse voltage: 8KV■ Trip Curve: C-type curve (5ln ~ 10ln)■ Wiring: 6 ~ 63A, can be connected to max wires of 25mm2;■ Mechanical life: 20000 times■ Electrical life: 10000 times■ Certification: CCC, CE, CB
