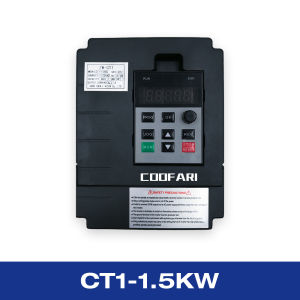

VFD AC 2.2KW Variable Frequency Drive VFD Frequency Converter Inverter Speed Controller for 3-phase Motor

Specification:Brand newBrand: COOFARIMaterial: engineering plasticColor: BlackSize: approx. 195130100mmPower: 1.5KW/2.2KWRated current: 7A/11AInput: 1PH AC 220V 50HZ/60HZCapacity: 4.0KVA (1.5KW/2HP)/ 8KVA(2.2KW/3HP)Output: 3PHOutput voltage regulation mode: PWM control Feature:Support 0-10v Input and output and 0-5V InputSupport 4-20ma inputInside Panel Can be Pulled out and Expend on for 2 meter long,there is one 2 meter long cable in the packageSpacing 2.54mm bar connector, 5-pin plug.DC cooling fan low noise, large air volume.Three anti-paint protection lines, improve and extend the life of the fuselage.The machine is screwed to ensure the safety and reliability of the use.The operator panel can be moved out and extended by 2MYou can buy more 2M cable,and plus to 4M 6M 8M etc.Fine workmanship and stable performance.Long service life.ZW-CT1 Support 0-10V In and Out,0-5V In, 4-20ma In;Support Relay Output ;ZW-AT1 not SupportSupport 0-10V In and Out,0-5V In,4-20 MA input and output ,do not support Relay out also;ZW-AT1 need be customized,that means to be pay extra cost for this ports function Package included:1 x Single Phase Variable Inverter1 x Manual (Russian or English)1 x 2 meter long cable If motorneed high speed rotate,like spindle motor,  For CT1,you should set the inverter parameter as below:you set P0-06 ,P0-07,P0-08 to 400,Defualt is 50hz,you can set to 400hz MAXand mind it should be operate under the indicator lamp is off.----------------------------------------------------------------------------------------------------------------------If motorneed high speed rotate,like spindle motor, FOR XSY-AT1 OR ZW-AT1 you should set the inverter parameter as below:P001=400,P003=200,P006=400So it is okР001 = 400, Р003 = 200, P006 = 400this is set to MAX 400hzif you want to set MAX 70hz,P001=70,P003=35 ,P006=70This model of inverter  factory default MAX frequency is 50HZWe ask buyer If your Inverter has show some error on display,first contact us,not open dispute,this is very harmful to us,it will effect our sales.
