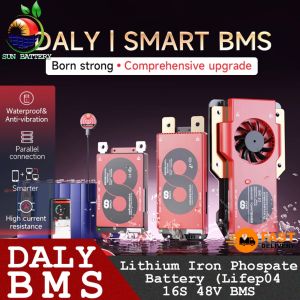

Lifepo4 Daly BMS 16S 48V 20A150A 3.2v Manufactured By Daly (Can be used with Balancer)

Daly 16s 48v BMS Charge/Discharge current for Lifepo4.BMS x 1balance wire x 1Description- Use top quality (A-level) protective integrated circuit IC, from the solution of Japan.- Strong load ability, constant discharge current 30A 60A 100A, use high voltage resistance- inner resistance power Mosfet. The heat sink will greatly help cooling.- IC itself has power balancing function. The circuit is simple and reliable.- Typical voltage detection for each cell. So each battery will be prevented over charged or over discharged. Over current and short circuit protection function is very reliable.Long time short circuit of the load won't affect the PCB and the battery- Extreme low power consumption. The consumption of the whole device is less than 50uA.- PCB use high anti-corrosion, high water resistance, high impedance ESD conformal Coatingspecification Over Charge Detection Voltage: 3.75±0.05VOver Charge Detection Delay Time: 0.5SOver Charge Release Voltage: 3.55±0.05VCell balancing Detection Voltage: 3.5VCell balancing Release Voltage: 3.5VCell balancing Current: 30±5mAOver Discharge Detection Voltage: 2.2±0.05VOver Discharge Detection Delay Time: 0.5SOver Discharge Release Voltage: 2.7±0.05VOver Current Protection Condition: Disconnect the loadDetection Condition: Exterior Short CircuitDetection Delay Time: 250uSRelease Condition: Disconnect the load
