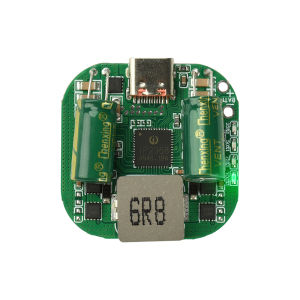

Bidirectional Fast Charging Module 100W IP2368 PD3.0 Type-C Interface for 2-5S Lithium Batteries with Temperature Protection

Features1. Supports 2-5S lithium-ion batteries, suitable for a wide range of battery pack requirements2. Bidirectional 100W high power for efficient and fast charging and discharging3. Type-C interface supporting the PD 3.0 fast charging protocol4. Built-in temperature protection for enhanced safety, reliability, and durability5. Component-free back panel for easy heat sink installation6. Integrated 4-LED battery level indicator for real-time status monitoringParameterVoltage: 2-5S lithium-ion or lithium iron phosphate batteriesInterface: Type-CInterface Power: 100WSupports multiple fast charging protocols including FCP, AFC, SCP, DRP, SRC, and PD 3.0Module ships with default settings for 4S 60W 4000mAh; the back panel is free of components, allowing for the addition of a heat sinkComes with built-in temperature protection; supports 2S-5S battery configurations; dimensions perfectly match a 4S 18650 battery pack4 battery level indicator lights display charging/discharging status and current battery levelIdeal for DIY high-performance fans, ultra-fast charging power banks, and fast charging of drone and RC model power batteriesCapacity vs. Corresponding Resistance Values:5000mAh corresponds to 6.2kΩ10000mAh corresponds to 12.4kΩ15000mAh corresponds to 18.7kΩ20000mAh corresponds to 24.9kΩ25000mAh corresponds to 30.9kΩCalculation formula: RCAP = Qmax / 800Example: 6.2kΩ = 5000mAh / 800Relationship between power and corresponding resistance values:20W corresponds to 5kΩ30W corresponds to 7.5kΩ45W corresponds to 11.2kΩ60W corresponds to 15kΩ100W corresponds to 25kΩCalculation formula: PCCIN = 4 × RISETExample: 100W = 4 × 25kΩRelationship between the number of batteries in series and corresponding resistance values:2 cells in series corresponds to 6.2kΩ3 cells in series corresponds to 9.1kΩ4 cells in series corresponds to 13kΩ5 cells in series corresponds to 18kΩPackage includeModule × 1
