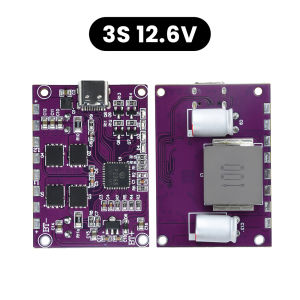

diymore | IP2368 Bidirectional 100W Fast Charging Module Buck-Boost Type-c Interface Lithium Battery High-Power Fast Charging Board

Product selling points1. Supports 100W PD fast charging protocol, efficiently supplying power to devices such as smartphones, tablets, laptops, etc2. Voltage boosting circuit design, easy to use, highly compatible3. Bidirectional charging and discharging function, balancing fast charging and high-speed power supply, meeting the needs of multiple scenarios4. High quality Type C interface, supporting forward and reverse plugging, easy to use and strong durability5. DIY power bank kit design, users can choose battery cell capacity to create exclusive devicesProduct parameters:Continuous operating current: 18AOvercharge voltage: 4.235V ± 0.025VInstantaneous current: 30AOvercharge release voltage: 4.190.05VCharging voltage: 16.8-17VOverdischarge voltage: 2.8+0.08VCharging current: 1-10AOver discharge release voltage: 3.0+0.1VBalanced starting voltage: 4.190.05VProduct information:Product Name: IP2368 Bidirectional 100W Fast Charging ModuleProduct main control IC: IP2368Power supply voltage: 4 series of lithium batteries (resistance can be modified to support 2-6 series of lithium batteries or iron phosphate front batteries), requiring a discharge capacity of>5A for the battery pack, and the battery pack must be used with a protective board;Hole center distance: 43.5 * 28.5mm (4 holes are M2 screws)The product is compact in size and can be powered through the two screw holes at the tail, which does not necessarily require welding and is very convenient. Modules can also be stacked on copper pillars, and multiple modules can be connected to a battery pack. They can be output from multiple ports or used as a UPS uninterruptible power supply.Product precautions:The bidirectional C port of the product can only be connected to unidirectional electrical appliances or chargers, such as charging heads, mobile phones, and other electrical appliances. Prohibiting bidirectional C-port connections to modules with bidirectional C-ports may result in frequent switching between modules that cannot be recognized, and serious damage may occur.The module has the function of bidirectional voltage rise and fall, and can output fixed 5V or 20V regardless of battery voltage changes. It should be noted that a charging and discharging voltage of 20V is required for 100W, and if the output is 12V, the maximum current can only reach 3A, which is 36W.Package includeFast charging module * 1
