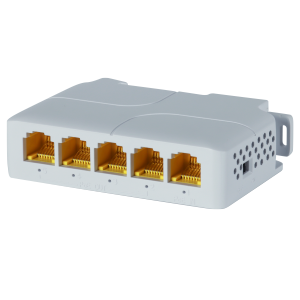

Hisource 5 Port 1000Mbps POE Extender Network Switch Repeater Support IEEE802.3af/at/bt 100m for POE Switch NVR IPC

Why choose Hisource?❤Welcome to consult OEM/ODMPrompt delivery and remarkable services .40+ R&D team, continuous new products, quality is more guaranteed.13 years of production experience,rofessional poe switch factory with high QC standard1.Product DescriptionHi-BT14G-AGigabit Ethernet PoE extender provides 1 Gigabit IEEE802.3af/at(PoE/90w) powered input, 1 Gigabit IEEE802.3af/at(PoE/60w) + 3 Gigabit IEEE802.3af/atpowered output, and 90W maximum power for the whole machine.Supports DIN rail mounting and one-touch vlan function.2.Product Features•1IEEE802.3af/at(PoE/90w) powered input port.•1IEEE802.3af/at(PoE/60w) powered port output.•3IEEE802.3af/at(PoE) power supply port outputs.•Network and POE relay extension•One-touch vlan function.•Supports DIN rail mounting.3.Product performance indicators3.1 Electrical characteristicsTable 1: Electrical characteristicsNo.Itemminimum valuemaximum valueRegularvalueunit1Input voltage445257Vdc2Input current2000mA3standby power1W3.2 Switch network performance indicatorsTable 2: network performance indicatorsNo.Function itemPerformance Metrics1Network StandardIEEE802.3，IEEE802.3u，IEEE802.3x2Network Medium10/100/1000BASE-TX:5 class and above non shielded twisted pair3Data Distance≤100m4Switch Capability10Gbps5Forwarding Rate10BASE-tx: 14880PPS/port 100BASE-tx：148800pps/port1000BASE-tx：1488000pps/port6MAC Address1K7Port FunctionPower priority mechanism, fast and forward, MAC automatic learning and agingIEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode8Packet forwarding rate7.4Mpps3.3 PoE power supply performanceTable 3:PoE power supply performanceNo.Function itemPerformance Metrics1PoE connection standardIEEE 802.3af/at2PoE Port input powermaximum.90W3PoE Port output powerMaximum output of port 1-3 is 30W/maximum output of port 4 is 60W4PoE power input power transmission core1/2+、3/6- 、4/5+、7/8-5PoE power onput power transmission corePorts 1-3 (1/2 +, 3/6-line pair)Port 4 (1/2 +, 3/6-, 4/5 +, 7/8-line pair)6POE power transmission distance≤100M7Power transmission medium10/100/1000BASE-TX: Class 5 and above unshielded twisted pair4.Safety requirementsTable 4: safety requirements tableItemTechnical indicatorsCompliance with indicatorsNoteSafety regulationsUL60950(60065)YesIEC/EN60065(60950)YesGB4943Yes5. Electromagnetic compatibility5.1 Electromagnetic interference EMITable 5:EMIItemTechnical indicatorsCompliance with indicatorsNoteNetwork portConduction interferenceGB9254,CLASS BNoFCC PART15 CLASSBNoEN55032NoRadiation interferenceGB9254,CLASS BNoFCCPART15 CLASSBNoEN55032No5.2 electromagnetic immunity EMSTable 6:EMSItemTechnical indicatorsCompliance with indicatorsNotePOE power input network portElectrostatic immunityGB17626.2-1998YesContact discharge 4KV, air discharge 8KVIEC61000-4-2YesContact discharge 4KV, air discharge 8KVLightning SurgeGB17626.4-1998NoCommon mold: (plastic shell without common mold)IEC61000-4-4YesDifferential mode: 4KV6. Insulation performance and grounding resistanceTable 7: insulation impedanceAC L/N ground wireDC 500V ≥30MTable 8: insulation withstand voltageAC L/N ground wireAC 1500V ,1MIN, Table 9: grounding resistanceShell to ground wire32A ,2MIN, 7. Environmental requirements7.1 Environmental temperatureWorking:-10℃-55℃.Storage:-40°C to 85°C7.2 HumidityOperating: 10% to 90% relative humidity (non-condensing)Storage: 5% to 95% relative humidity (non-condensing)7.3 AltitudeWorking:Maximum 6500 feet (2000 meters)Storage: 6500 feet (2000 meters) maximum7.4 Cooling MethodVentilation cooling.
