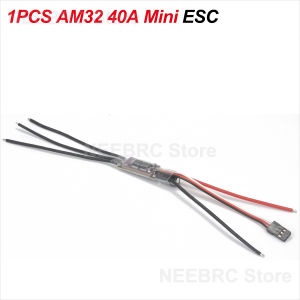

AM32 40A Brushless ESC 32-bit 2-4S Speed Controller Support PWM/DSHOT/Sine T/XT60 Plug for RC Car Crawler Drone Brushless Motor

AM32 40A Brushless ESC 32-bit 2-4S Speed Controller Support PWM/DSHOT/Sine T/XT60 Plug for RC Car Crawler Drone Brushless MotorAttention: The parameters of our product are default for cars when it leaves the factory, and it needs to be used with a tuner for airplane models.Description:A new 32-bit ESC product, with a super mini size, very suitable for compact installation, it is a driving tool for various small model airplane brushless motors.Selected low-power MOS tube with layout placed on the same side for convenient heat dissipation and strong power.Mini size and high power, it is the preferred power for small aircraft, crawler, climbing vehicles.Integrates the BEC module (5V2A), adds overcurrent copper bars, adds thermal conductive silicone sheets, and takes all performance to a higher level.Supports mainstream control signals such as DSHOT and PWM, with linear at low speeds, violent at high speeds, and smooth speed regulation. It uses AM32 open-source firmware, which can be freely adjusted. It supports bidirectional operation, adjustable drag braking, sine start, and other functions, and fast forward and reverse switching is very smooth.With a 470uF 35V capacitor to improve its working condition.Add low voltage protection function, improve low-speed linear performance.40A ESC Specification:Item name: 32-bit ESCFirmware: AM32Master control: AT32Working voltage: 2-4S LipoMax current: 40ABEC: 5V2ASupport signal: PWM/DSHOT/Sine, etc.Applicable motor:Below the 22 seriesBoard size: 30x12mmWeight: about 4.6gUSB LinkFor AM32/BL32, connects the ESC to a computer for configuration or firmware upgrade.Portable and easy to use, simply connect the ESC signal plug, connect the USB cable to a computer, and install the VCP driver.AM32 firmware is specifically designed for AT32 ARM processors, for controlling brushless motors (BLDC). The firmware is designed to be safe, fast, with a smooth and rapid start, and linear throttle. It is suitable for various vehicle types and flight controllers.Specification:Item Name: AM32 ESC Param ConverterLink:USB Product size: 41.50.8cmPackage size: 4.8831cmQuantity: 1 piece
