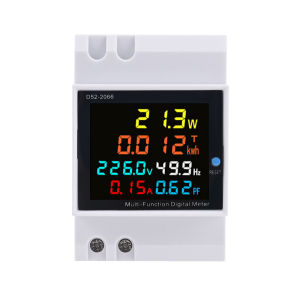

6IN1 Din rail AC monitor 110V 220V 100A Voltage Current Power Factor Active KWH Electric energy Frequency meter VOLT AMP

1.Accuracy: 1％±2 words2. Range:AC voltage:AC 40.0-300.0VThe measuring range 40-300V without limitation, and it can be used in grid power, photovoltaic and inverter current 250-450V only can use for 380VAC Current:AC 0-100.0A, the current resolution is 0.01A .Frequence: 45.0Hz – 65.0HzPower Factor: 0.00-1.00PFElectric Power: 0-450000W, the electric power resolution is 0.1W when measure electric power between 0-9999.9W, otherwise the electric power resolution is 1W.Electric Energy: 0-99999kwh, the display of electric energy resolution is 0.01kwh when measure electric engery between 0-999.99kwh, the display of electric energy resolution is 0.1kwh when measure electric engery between 1000.0-9999.9kwh and the display of electric energy resolution is 1kwh when measure electric engery larger than 9999.9kwh3. Speed: 2 times per second4. Size: 54×80×645.Installation:Din-RailApplication Method1. Connect the measure voltage to the 1 and 2 terminal2. Connections of meter with internal current transformer as graph 1. Make the wire through the hole in the meter and the direction chose arbitrarily.3. Connections of meter with external current transformer as graph 2. Make the wire through the hole in the meter, and connect the two wires of the secondary transformer to the 3 and 4 terminal.4. When power on, the meter display the measure parameters.5. When power on, you can press the button of SAM CK last for 5 seconds, then the electric energy will to be zero and start to cumulate when release the button. And when power off, the meter can save the value of electric energy and go on cumulating data when the meter power-on next.Attention: The meter can only use for measure 45-65Hz AC city electricity.❀Hello!Welcome to Chance meeting store.ph!Quality first, service best is our aim.Please feel free to contact us if you have any questions.❀The goods in this store have sufficient supply, pay attention to this store, and the baby will be shipped first!❀We are a local merchant in the Philippines.❀Our delivery speed is the fastest in the Philippines. ❀Delivery takes about 1-3 days in Manila and 3-6 days in other areas. Please rest assured to order, thank you!
