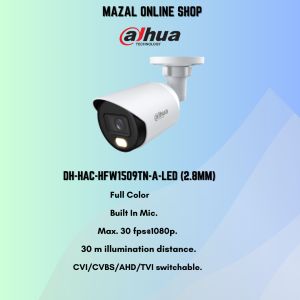

DAHUA BULLET 5MP FULL COLOR WITH MIC 2.8MM LENS

DH-HAC-HFW1509T(-A)-LED5MP Full-color HDCVI Fixed-focal Bullet Camera> * The parameters and datasheets below can only be applied to 1509-S3 series.> *In order to use the 5MP 16:9 HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000001.0.R.200908 or later version> Max 25 fps@5MP (16:9 video output)> Super Adapt, 120 dB true WDR, 3D NR> 24/7 color imaging> Smart Light+.> Built-in Mic.> 30 m illumination distance> CVI/CVBS/AHD/TVI switchable> 3.6 mm fixed lens (2.8 mm optional)> IP67, 12 VDC.CameraImage Sensor5 MP CMOSMax. Resolution2880 (H) × 1620 (V)Scanning SystemProgressiveElectronic Shutter SpeedPAL: 1/3 s–1/100,000 s; NTSC: 1/4 s–1/100,000 sMin. Illumination0.0005 lux@F1.0 (Color, 30 IRE) 0 lux (Illuminator on)S/N Ratio>65 dBIllumination Distance30 m (98.43 ft)Illuminator On/Off ControlAuto/ManualIlluminator Number2 (Warm light)Angle AdjustmentPan: 0°–360° Tilt: 0°–90° Rotation: 0°–360°LensLens TypeFixed-focalAuto FocusNoLens MountM12Focal Length2.8 mm; 3.6 mmMax. ApertureF1.0Field of View2.8 mm: H: 112°; V: 57°; D: 132° 3.6 mm: H: 88°; V: 46°; D: 104°Iris ControlFixedClose Focus Distance2.8 mm: 2 m (6.56 ft) 3.6 mm: 2.3 m (7.55 ft)DORI DistanceLensDetectObserveRecognizeIdentify2.8 mm67.4 m( 221.13 ft)27.0 m( 88.58 ft)13.5 m( 44.29 ft)6.7 m( 21.98 ft)3.6 mm80.0 m( 262.47 ft)32.0 m( 104.99 ft)16.0 m( 52.49 ft)8.0 m( 26.25 ft)*DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.VideoVideo Frame RateCVI: PAL: 5M@25 fps; 5M@12.5 fps; 4M@25 fps; 1080p@25 fps NTSC: 5M@25 fps; 5M@10 fps; 4M@30 fps; 1080p@30 fps AHD: PAL: 4M@25 fps NTSC: 4M@30 fps TVI: PAL: 5M 16:9@20 fps; 4M@25 fps NTSC: 5M 16:9@20 fps; 4M@30 fps CVBS: PAL: 960H NTSC: 960HResolution5M (2880 × 1620); TVI 5M 16:9 (2960 × 1665); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480)Day/NightColorBLCBLC; HLC; WDR; HLC-ProWDR120 dBWhite BalanceAuto;Area white balanceGain ControlAuto/ManualNoise Reduction3D NRIllumination ModeSmart LightDefogElectronic defogDigital Zoom4×MirrorYesPrivacy MaskingOff/On (8 areas, rectangle)Pick-up Distance8 m (26.25 ft)CertificationCertificationsCE-LVD: EN 62368-1; CE-EMC: EN 55032; EN 55035;AudioBuilt-in MicYesPortVideo OutputVideo output choices of CVI/TVI/AHD/CVBS by one BNC portPowerPower Supply12 VDC ± 30% (It is recommended to use a power adapter to supply the power for one camera)Power ConsumptionMax 5.5 W(12 VDC, LED on)EnvironmentOperating Temperature–40 °C to +60 °C (–40 °F to +140 °F)Operating Humidity<95% (RH), non-condensingStorage Temperature–40 °C to +60 °C (–40 °F to +140 °F)Storage Humidity<95% (RH), non-condensingProtectionIP67Anti-corrosion LevelBasic ProtectionStructureCasing MaterialMetalProduct Dimensions174.2 mm × 70.6 mm × 72.3 mm (6.86" × 2.78" × 2.85") (L × W × H)Net Weight0.37 kg (0.82 lb)Gross Weight0.48 kg (1.06 lb)InstallationWall mount; ceiling mount; vertical pole mount
