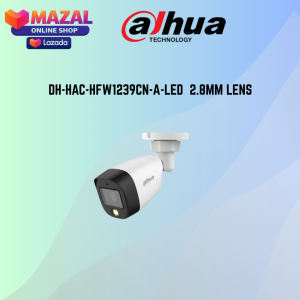

DAHUA BULLET FULL COLOR 2MP WITH BUILT IN AUDIO

DH-HAC-HFW1239CN-A-LED2MP Full-color HDCVI Fixed-focal Bullet Camera* The parameters and datasheets below can only be applied to1239-S3 series.> 24/7 color imaging, Max. 30 fps@1080p.> Smart Light+.> 30 m illumination distance.> Super Adapt, 130 dB true WDR, 3D NR.> Built-in Mic.> 3.6 mm fixed lens (2.8 mm optional).> CVI/CVBS/AHD/TVI switchable.> IP67, 12 VDC.Lens TypeFixed-focalLens MountM12Focal Length3.6 mm; 2.8 mmMax. ApertureF1.0Field of View2.8 mm: H: 101°; V: 53.4°; D: 119.5°3.6 mm: H: 81.5°; V: 44.3°; D: 95.7°Iris ControlFixedClose Focus Distance2.8 mm: 1.1 m (3.61 ft)3.6 mm: 1.7 m (5.58 ft)DORI DistanceLensDetectObserveRecognizeIdentify2.8 mm47.1 m( 154.53 ft)18.9 m( 62.01 ft)9.4 m( 30.84 ft)4.7 m( 15.42 ft)3.6 mm55.7 m( 182.74 ft)22.3 m( 73.16 ft)11.1 m( 36.42 ft)5.6 m( 18.37 ft)DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.
