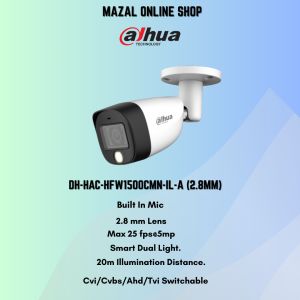

DAHUA 5MP BULLET SMART DUAL LIGHT HDCVI

DH-HAC-HFW1500CM-IL-A5MP Smart Dual Light HDCVI Fixed-focal Bullet Camera* The parameters and datasheets below can only be applied to1500-IL series.* In order to use the 5MP 16:9 and the Smart Dual Light HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000004.1.R.220323 or later version.> Max 25 fps@5MP (16:9 video output).> Smart Dual Light. > 20 m illumination distance. > Super Adapt. > Built-in MIC. > 3.6 mm fixed lens (2.8 mm optional). > CVI/CVBS/AHD/TVI switchable. > IP67, 12 VDC.CameraImage Sensor5 MP CMOSMax. Resolution2880 (H) × 1620 (V)Scanning SystemProgressiveElectronic Shutter SpeedPAL: 1/25 s–1/100000 s NTSC: 1/30 s–1/100000 sMin. Illumination0.05 lux@F1.6 (Color, 30 IRE) 0.005 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on)S/N Ratio>65 dBIllumination DistanceIR: 20 m (65.62 ft) Warm Light: 20 m (65.62 ft)Illuminator On/Off ControlAuto/ManualIlluminator Number1 (Warm light);1 (IR light)Angle AdjustmentPan: 0°–360° Tilt: 0°–90° Rotation: 0°–360°LensLens TypeFixed-focalLens MountM12Focal Length2.8 mm; 3.6 mmMax. ApertureF1.6Field of View2.8 mm: H: 106°; V: 56°; D: 125° 3.6 mm: H: 92°; V: 48°; D: 109°Iris ControlFixedClose Focus Distance2.8 mm: 0.8 m (2.62 ft) 3.6 mm: 1.3 m (4.27 ft)DORI DistanceLensDetectObserveRecognizeIdentify2.8 mm56 m(183.73 ft)22.4 m(73.49 ft)11.2 m(36.75 ft)5.6 m(18.37 ft)3.6 mm76 m(249.34 ft)30.4 m(99.74 ft)15.2 m(49.87 ft)7.6 m(24.93 ft)DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.VideoVideo Frame RateCVI: PAL: 5M@25 fps; 4M@25 fps; 1080p@25 fps; NTSC: 5M@25 fps; 4M@30 fps; 1080p@30 fps AHD: PAL: 4M@25 fps; NTSC: 4M@30 fps TVI: PAL: 4M@25 fps; NTSC: 4M@30 fps CVBS: PAL: 960H; NTSC: 960HResolution5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480)Day/NightAuto(ICR)/Color/B/WBLCBLC; HLC; DWDRWDRDWDRWhite BalanceAuto; Area white balanceGain ControlAuto/ManualNoise Reduction2D NRIllumination ModeSmart IR&WL; WL Mode; IR ModeMirrorYesPrivacy MaskingOff/On (8 areas, rectangle)CertificationCertificationsCE-LVD: EN 62368-1; CE-EMC: EN 55032; EN 55035; FCC: 47 CFR FCC Part 15, Subpart B; UL: UL62368-1 + CAN/CSA C22.2 No. 62368-1-14PortVideo OutputVideo output choices of CVI/TVI/AHD/CVBS by one BNC portAudio InputOne channel built-in micPowerPower Supply12 VDC ± 30%Power ConsumptionMax 3.1 W (12 VDC, WLED on)EnvironmentOperating Temperature–40 °C to +60 °C (–40 °F to +140 °F)Operating Humidity<95% (RH), non-condensingStorage Temperature–40 °C to +60 °C (–40 °F to +140 °F)Storage Humidity<95% (RH), non-condensingProtectionIP67StructureCasing MaterialMetalProduct Dimensions166.6 mm × 69.7 mm × 70 mm (6.56" × 2.74" × 2.76")Net Weight0.33 kg (0.73 lb)Gross Weight0.41 kg (0.90 lb)InstallationWall mount; ceiling mount; vertical pole mount
