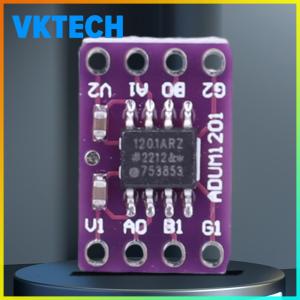

[Vktech] Dual Channel Magnetic Isolator Board for Remote Controls SPI Interface Replacement Compatible with Optocouplers in Electronics Parts

ADUM1201 Serial Magnetic Isolator Module SPI Interface Dual Channel Serial Digital Isolator Module Small Replace Optocouplers Electronic Components Features: 1. Fast Speed: Built on Analog Devices, Inc.'s iCoupler technology, the ADUM1201 digital magnetic isolator combines high-speed CMOS with single-chip transformer technology, offering superior performance compared to other devices like optocouplers. This enables fast data transfer and reliable communication. 2. Low Power Consumption: The ADUM1201 serial magnetic isolator module utilizes a low-power design, resulting in minimal power consumption. This makes it suitable for applications where power efficiency is critical, allowing for extended battery life or reduced energy costs. 3. Compact Size: Thanks to its integration and compact design, the ADUM1201 magnetic isolator board significantly reduces the required PCB footprint. This allows for more efficient use of space in electronic systems while maintaining excellent performance and functionality. 4. Wide Application: The ADUM1201 magnetically isolated module's versatility allows it to be used in a wide range of applications. It provides reliable signal isolation for RS-232, RS-422, and RS-485 transceivers, ensuring data integrity and protection against electrical noise and ground issues. 5. Dual Channels: With its dual-channel design, the ADUM1201 magnetic isolator sensor offers independent signal isolation for different communication paths. It allows for simultaneous isolation of multiple signals while maintaining high-speed and accurate data transmission. Specification: Origin: Mainland China Type: Module Condition: New Model Number: Digital Magnetic Isolator Operating voltage: 2.7-5.5V Working current: 0.8mA Product size: 15103mm/0.590.390.12in 1.ADUM1201 is a 1-channel directional dual-channel digital isolator based on the 2. Based on Analog Devices, Inc.'s iCoupler technology, which combines high-speed CMOS with monolithic transformer technology and has superior performance to other devices such as optocouplers. 3. iCoupler devices do not use LEDs and photodiodes, and therefore do not have the design difficulties that usually exist with optocouplers. 4. The simple iCoupler digital interface and stable performance features current transfer ratio uncertainty, nonlinear transfer functions, and the typical temperature and longtime effects of optocouplers. 5. Eliminates the need for external drivers and other discrete components. 6. At comparable signal data rates, iCoupler devices consume 1/10th to 1/6th of the power of the optocoupler. Features: 1. Higher speed. 2. Minimum operating current of 0.8mA. 3. Higher performance timing accuracy, transient common-mode rejection, and degree of inter-channel matching are superior to traditional optoisolators. 4. Integration is smaller, the printed circuit board (PCB) area of 40% of the traditional opto-isolator. 5. Application: RS-232/RS-422/RS-485 transceiver isolation 6. Low Power Consumption: ADUM1201 adopts a low-power design with low power consumption, which can satisfy applications requiring high energy efficiency. 7. Wide Operating Temperature Range: ADUM1201 has a wide operating temperature range to adapt to the application requirements of different conditions. Note: 1. GND1 and GND2 are two different reference grounds, otherwise the isolation effect will not work. 2. When ADUM1201 is working normally, both ends should be powered at the same time to ensure that both channels of ADUM1201 can work normally. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you! Please allow 1-2cm measuring deviation due to manual measurement.
