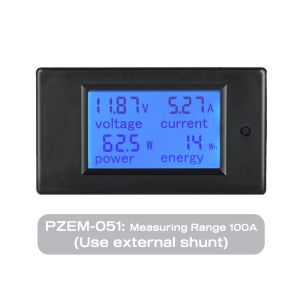

CG DC Multifunction Battery Monitor Meter 6.5-100V PZEM-031/051 0-200V PZEM-013/015 LCD Display Digital Meter Voltmeter Ammeter

  Attention: This link sells only monitor meters and does not include shunts.  ○ PZEM-015: Measuring Range 300A (use external shunt, can matched with 50A, 100A, 200A, 300A four kinds of shunt)○ PZEM-031: Measuring Range 20A (Built-in Shunt)○ PZEM-013: Measuring Range 10A (Built-in Shunt)○ PZEM-051: Measuring Range 100A (use external shunt, can matched with 50A, 100A two kinds of shunt)PZEM-031/PZEM-051(4 in 1 Digital Meter)★ Electrical parameter measurement function (voltage, current, power, energy).★ The voltage alarm function (over voltage alarm thresholds, backlighting and voltage flicker tips).★ The power button clear function.★ Power-down data storage function.★ Large-screen LCD screen full display function (display voltage, current, power, energy).Product ParameterWorking voltage: 6.5 ~ 100VDCTest voltage: 6.5 ~ 100VDC Accuracy: +/- 1%Rated power: 100A / 10000WMeasurement accuracy: 1.0Display Format1. Power: measurement range 0 ~ 10kW1kW display format within 0.0 ~ 999.9W;From 1kW display format 1000 ~ 9999W.2. Energy: measurement range 0 ~ 9999kWh10kWh within the display format 0 ~ 9999Wh;Above 10kWh display format 10 ~ 9999kWh;3. Voltage: test range 6.5 ~ 100VDisplay Format 6.50 ~ 99.99V4. Current: Test Range 0 ~ 100ADisplay Format 0.00 to 99.99.--------------------------------------------------------------------------------------------------PZEM-013/PZEM-015(9 in 1 Digital Meter)★ 9 in 1 Measurement Functions : One interface displays 9 kinds of measurement parameters at the same time, including Voltage(0-200V), Current(0-300A can set from menu), Power(0-20000W), Impedance( 0-1000Ω), Internal Resistance(0-999mΩ), Capacity(0-1000AH), SOC, Energy Consumption(0-9999kWh) and Running Time(0-999h)★ Better Visual Experience : LCD HD display, 360° viewing without dead angle, with backlight function, it is clearly visible whatever day or night★ No Screw Installation : With the installation design of the push-on terminal, it is easy and convenient to install and remove the wires without the screws★ Accurate Measurement : High precision chip control, efficient and stable operation, safe and reliable welding process, measurement accuracy reaches 1%★ Wide Application : Wildly used in the automobile, solar system, industrial assembly line, etc.Product Parameter●VoltageMeasure range: 0-200VDisplay: <10V, display 9.99V; <100V, display 99.9V; ≥100V, display 199VMin.Resolution: 0.01VStart test voltage: 0.05VAccuracy: 1%●CurrentMeasure range: 0-300A.Display: <1A, display 999mA; <10A, display 9.99A; <100A, display 99.9A; ≥100A, display 199AMin.Resolution: 1mAStart test current: 20mAAccuracy: 1%●PowerMeasure range: 0-60000WDisplay: <10W, display 9.99W; <100W, display 99.9W; <1000W, display 999W; <10000W, display 9.99kW; ≥10000W, display 19.9kWMin.Resolution: 0.01WStart test power: 0.2WAccuracy: 1%●Impedance: Impedance=voltage/currentMeasure range: 0-1000ΩDisplay: <100Ω, display 99.9Ω; ≥100Ω, display 999ΩWhen over the range or current is 0 displayed "---".Min.Resolution: 0.1ΩAccuracy: 1%●Running timeRange: 0-999 hr(no load no time)Display: 0:00:00-999:59Notes1. This module is suitable for indoor, not outdoor use.2. Applied load can not exceed the rated voltage and current.3. The wiring order can not be wrong.
