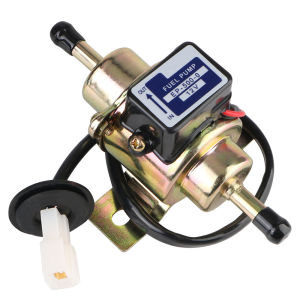

Automobile Electronic Pump Gasoline and Diesel Pump Universal Car accessories Car Oil Fuel Pump DC 12V

Features: 100% brand new and high qualityNo diaphram, free flowThe solenoid pump uses a piston actuated by an electromagnetic coil to generate fuel pressure and flow.By using only short pulses of electricity, the solenoid pump is very energy-efficient.It is also long-lasting, with no internal rubber parts or bellows to wear out.Specifications: Pressure:3-5PSICurrent:1.0-1.3AOutput Pressure:0.005PaVoltage:12VFlow:0-30 GPH / 75 - 110 LPHFitting Size:1/4" tubingMade of high Brass and metalInstallation Instructions:1.Disconnect the battery. uninstall the mechanical fuel pump(it's up to you).2.Select an area close to the existing fuel lines close to the fuel tank mount the pump.3. Connect the fuel line from the tank to the fuel filter and the filter to the inlet port of the pump.4. Connect the carburetor delivery line to the outlet port of the pump.5. Connect the power lead from the fuel pump to the (P) terminal of the oil switch.6. Connect a lead to the (I) terminal of the oil switch to the open 12-volt power source controlled by the ignition switch7. Connect a lead from the normally closed starting system to the (S) terminal of the oil switch.8.  Start the engine to check if it works or leaksPackage Included:1 Car Oil Fuel Pump
