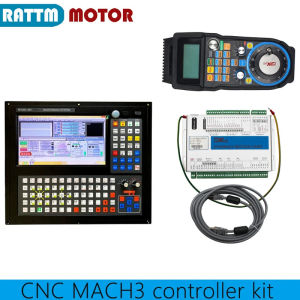

ZZSA XHC 3 4 6 Axis Ethernet Mach3 CNC Motion Control Driver Card Breakout Board Kit With Wireless Handwheel T6H1N

Package include:1 x 3/4 /6 Axis Mach3 ethernet Card XHC1 x Offline controller1 x 4/6 axis wireless handwheel Package features:Parameter DescriptionAxis OutputControl:Drive CurrentIsolated open collector output:5V.20mADrivePulse+Dirction OutputOutput Frequency2000KHzAxes3/4/6 AxisIsolation Voltage3.5KVSpindle InverterOutput:3 Types of outputmodesAnalog Voltage Output0-10VPWM output5V.1KHz, Duty:0-100%Pulse+Direction Output5V 15Hz to 4KHz8 IO outputDrive CurrentIsolation inputs, 5mA Maximum voltage 25vIsolation Voltage3.5KV16 IO InputInput CurrentIsolated inputs, 5mA Maxinum Voltage 25VIsolation Voltage3.5KV★ Support all versions of Mach3, only suitable for Windows operating system, only Ethernet interface, you need to set the IP communication address when using it (refer to page 20)★ Support spindle speed feedback function★ Support resume function after power failure★ Support up to 10 meters of Ethernet cable, no need to install drivers, plug and play;Support up to 6-axis linkage, including jog 6-axis linkage.(Depending on the model, the number of supported axes is different)★ With 2000KHz pulse output, support differential signal output, support servo/Stepper motor.★ With status indicator, it can prompt the connection status, Mach3 connection status,During operation, various states are clear at a glance.★ It has 16 input ports, 8 output ports and supports extended input and output portsAll IO ports are fully isolated, with strong anti-interference and stable performance★ Support spindle PWM speed control output; support spindle pulse + direction output;★ Support spindle 0 to 10V analog voltage speed control output.★ 184x127x30mm, aluminum shell, shielding interference, stable and reliable.Features :1. Work for Mach32. Support 4 axis. the 4th axis- A axis, no A=0 function ( A axis functions are not as much as the other 3 axis)3. All the buttons can be programmable4. About the hand wheel, you move slow, the machine runs slow; also you move fast, the machine runs fast.5. Rich real-time display of large screen LCD:6. Display machine status,run,pause,idle,step value7. Display X y Z axis workplace coordinate and x y z axis machine coordinate8. Show the feed rate,spindle speed
