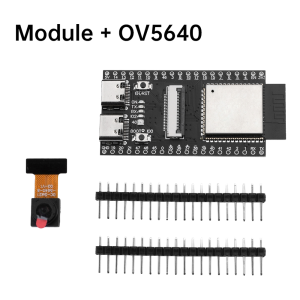

ESP32-S3 N16R8 CAM Development Board Serial to WiFi+Bluetooth Module OV2640/OV3660/OV5640 Camera Dual Type-C ESP32-S3-CAM

ESP32-S3 -CAM Development Board Wifi Bluetooth Module Onboard Esp32-S3-N16R8 Module Dual Type-CFeatures:1. The ESP32-S3 is an ESP32S3 module designed with an on-board PCB antenna.2. The ESP32-S3 development board supports either the OV2640 or OV5640 camera.3. The ESP32-S3 is a low-power MCU system-on-chip (SoC) integrating dual-mode 2.4 GHz Wi-Fi and Bluetooth Low Energy wireless communication.4. Featuring complete Wi-Fi and Bluetooth Low Energy subsystems, the ESP32-S3 delivers industry-leading power efficiency and RF performance. It supports multiple low-power operating modes to meet diverse application power requirements.5. The ESP32-S3 chip provides extensive peripheral interfaces alongside multiple proprietary hardware security mechanisms. Its robust security architecture enables the chip to meet stringent security requirements.Parameters:Controller: Dual-core 32-bit XtensaR LX7 CPU, operating at up to 240MHzMemory: 384KB ROM, 512KB SRAM, 16KB RTCSRAM, 8MB PSRAMOperating Voltage: 3V to 3.6VUp to 45 GPIO pins2 × 12-bit ADCs (up to 20 channels)Communication Interfaces:2 × I²C interfaces2 × I²S interfaces4 × SPI interfaces3 × UART interfaces1 × USB On-Board Gateway (oTG) interfaceTemperature Range: -40 to 65 degrees CelsiusWiFiSupports IEEE 802.11 b/g/n protocolsSupports 20 MHz and 40 MHz bandwidths in the 2.4 GHz bandSupports 1T1R mode with data rates up to 150 MbpsWireless Multimedia (WMM)Frame aggregation (TX/RX A-MPDU, TX/RX A-MSDU)Immediate Block Acknowledgement (ImmediateBlock ACK)Fragmentation/Defragmentation - Beacon Auto-Monitoring (Hardware TSF) - 4× Virtual Wi-Fi InterfacesSimultaneously supports Infrastructure BSS Station mode, SoftAP mode, and Station+SoftAP mixed mode. Note: When scanning in Station mode, the SoftAP channel changes simultaneously on the ESP32-S3.Antenna Diversity802.11 MCPFTMExternal power amplifier supportBluetoothBluetooth Low Energy (BLE): Bluetooth 5, Bluetooth MeshHigh-power mode (20 dBm, sharing PA with Wi-Fi)Supported rates: 125 Kbps, 500 Kbps, 1 Mbps, 2 Mbps.Broadcast ExtensionsMultiple Advertisement Sets Channel Selection Algorithm #2 Wi-Fi and Bluetooth coexistence, sharing the same antennaAdvanced peripheral interfaces and sensors45 x GPIO pinsDigital interfaces:- 4x SPI- 1x LCD interface (8-bit- 16-bit parallel RGB, l8080, MOTO680), supporting conversion between RGB565, YUV422, YUV420, YUV411- 1x DVP 8-bit to 16-bit camera interface- 3x UART- 2x I²C- 2x 12S- 1xRMT (TX/RX)-1x Pulse counter-LED PWM controller, up to 8 channels- 1x Full-speed USB OTG- 1 x USB Serial/JTAG controller- 2x MCPWM- 1x SDIO host interface with 2 card slots- General-purpose DMA controller (GDMA), 5 receive channels and 5 transmit channels- 1x TWAI controller, compatible with ISO 11898-1 (CAN specification 2.0)Analogue Interfaces:- 2x12-bit SAR ADCs, up to 20 channels- 1x temperature sensor- 14x capacitive sensing GPIOsTimers:- 4x54-bit general-purpose timers- 1x52-bit system timer- 3x watchdog timersProduct Dimensions: 57mm × 28mmProduct Listing:Kit 1:1Development Board2Pin HeaderKit 2:1Development Board2Pin Header1*Camera (OV2640/OV5640/OV3660 optional)
