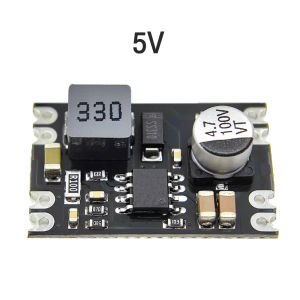

DC-DC Step Down Power Supply Module 2A DC 6-100V to 5V 9V 12V 24V Mini Buck Board Converter Multifunction High Voltage Regulator

Product Features:Fixed output 5V, 9V, 12V, 24V; input 7-100V with overheat and overload shutdown protectionHalf-hole PCB design for surface-mount application; ultra-compact size 25.5×16.5×7mmThe DC-DC step-down module is a device that converts high DC voltage into lower voltage. The input voltage must exceed the output voltage (voltage difference required), e.g., 12V to 5V, 24V to 5V.Utilizing microelectronics technology, it features high efficiency, compact size,simple operation, and easy installation.Product Specifications:Input Voltage: 7V~100V (Input must exceed output)Output Voltage: 5V/9V/12V/24VOutput Current: 3A (Maximum Peak) Continuous current within 2AConversion Efficiency: 96% (Maximum)Output Ripple: Output Accuracy: ±0.1VNo-Load Current: 1mAOperating Temperature: -40°C to +125°COperating Humidity: 20% to 90%Dimensions: 25.516.57mm (LWH)PCB Layers: 2 layersShutdown Function: With shutdown functionHeat Dissipation: Natural convectionMounting Method: Wire bonding, SMDIsolation: Non-isolatedManufacturing Process: Reflow solderingService Life: 35,000 hours MTBF (output current not exceeding rated value)Special Process: Half-hole PCBOperating Frequency: 1MHzProduct List1X Module
