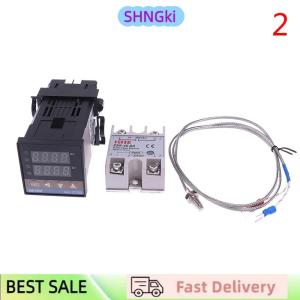

SHNGki 100-240VAC PID REX-C100 Temperature Controller SSR-40A Thermocouple

Measuring accuracy: + -0.5%FS Cold-end compensation tolerance: + -2 Celsius(can be modified by software in 0 50 Celsius) Resolution: 14 bit Sampling cycle: 0.5 Sec Power : AC 100-240V 50 60HZ Process value (PV), Setting value (SV) PIN control (including ON OFF, step-type PID and continuous PID) Self-tuning control Relay output: contact capacity 250V AC 3A (resistive load) Proportional band (P): 0 full range (ON OFF control when set to 0) Detective temperature range: 0 to 900 Celsius Insulation resistance: more than the 50M (500V DC) Insulation resistance : 1500V AC min Insulation resistance : Power Consumption Less than 10 VA Service environment: 0 50 Celsius Environment with no corrosive gas 30 85% RH Aluminum Alloy Heat Sink Specification: Materail: Aluminium alloy. Size:Roof:50mmX60mm.Foot:80mmX50mm. Height:43mm. Compatible with:Designed specially for single phase solid state relay. Color :Silver Max.40A SSR Output Current:40A Input Voltage:DC 3-32V Output Voltage:24-380V AC Output Voltage Range:Standard Type Package Included: 1 x PID Temperature Controller OR 1 x PID Temperature Controller 1 x K Type Probe Sensor 1 x Max.40A SSR
