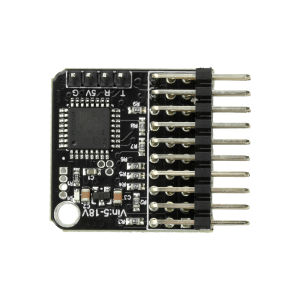

diymore | 8-Channel Signal Converter PWM Conversion Module Automatic Protocol Conversion for FPV Drones Real-Time No Delay

Features: 1. Supports automatic conversion of multiple protocols, with strong compatibility. 2. Wide voltage input 5-18V, suitable for stable operation in various power supply environments. 3. Can be connected to a high-frequency head to achieve traditional remote control of equipment. 4. The blue light indicates the status and provides real-time feedback on the signal connection status, making the operation intuitive. 5. Real time conversion without delay, suitable for high-speed response scenarios such as FPV drones.Parameters: Voltage input: DC 5-18V Supporting protocols: CRSF/PWM/SBUS/PPM (automatic protocol conversion) PWM channel: 8 channels (50Hz) LED lights: Blue LED flashing: indicates no input signal connection Blue light constantly on: indicates that the input signal is connected Interface Description: Voltage: 5-18V RX: CRSF input TX: CRSF output IO1: SBUS input or PPM input/PPM output IO2: SBUS output or PPM output Instructions for Use: By default, the PWM interface of the module outputs channels 1-8. If points B and G in the circle on the left are short circuited, the PWM stage will output channels 9-16. By default, the SBUS interface of the module inputs and outputs standard SBUS (inverted). If points A and G in the circle on the left are short circuited, the SBUS interface will input and output non inverting SBUS (used to accommodate some non-standard SBUS interface devices). Product Description: This module enables remote controllers with PPM/SBUS/PWM protocols to connect to ELRS transmitters. The PPM protocol training port of the model aircraft remote control can be connected to this module. The SBUS protocol remote control can be used with this module (requires connection to the SBUS receiver). The ELRS communication model aircraft remote control (firmware version 3.0 or higher) can be connected to this module. This module can also be used to connect ELRS transmitters, allowing SBUS/PWM/PPM remote controls to connect to ELRS transmitters to control ELRS communication based receiving devices, such as FPV drones. Other instructions: -PWM protocol input: Real time conversion and output of SBUS protocol (inverted), CRSF protocol, PPM protocol. (No delay) -PPM protocol input: It can convert and output SBUS protocol (reverse), CRSF protocol, and 8-channel PWM protocol in real time. (No delay) -SBUS protocol input: It can convert and output CRSF protocol, PPM protocol, and 8-channel PWM protocol in real time. (No delay) -CRSF protocol input: It can convert and output SBUS protocol (reverse), PPM protocol, and 8-channel PWM protocol in real time. (No delay)Product list: 1X module
