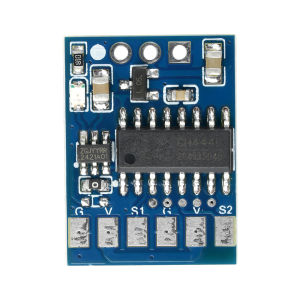

GAQQEE | DC 5-12V 2-Channel/3-Channel Video Switcher Video Switching Module Suitable for FPV Drones and Cameras

Product Features:1. Supports DC 5-12V wide voltage power supply, adapting to diverse power environments.2. Supports 2-channel/3-channel video input switching, compatible with FPV applications, delivering stable and reliable performance.3. Utilises PWM control signals for precise video switching functionality.4. Compact size facilitates easy installation and integration.5. Clear, intuitive silk-screen markings ensure straightforward operation.Product Specifications:Control Signal: PWMPower Supply Range: 5-12V (supports higher than receiver voltage)IN1: 1000μs±200 LED fast flashIN2: 1500μs±200 LED medium flashIN3: 2000μs±200 LED slow flashDimensions: 20×15mm (excluding header pins)Pin Description:GND: Negative terminalVIN1: Module power supply (5-12V)PWM: Control switching signal input, 50Hz, 1000-2000μs rangePWM switching cycleCM1: 1000-1400μsCM2: 1450-1600μsCM3: 1650-2000μsGND: Negative terminalVCC: Camera power supplyVIDEO1/2/3: Video signal inputVIN2: Power input for camera supplyVIN2-VCC conductive pathOUT: Video signal output (one of three channels), connect to video transmission VIDEO or flight controller CAM interfaceProduct list:1x Module
