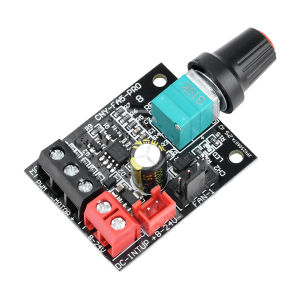

diymore | DC 8-24V 5A 4 Wire Violent Fan Speed Controller Brushless 22KHz Adjustable DC Motor PWM Speed Controller

Features1.Support 8-24V wide voltage input, suitable for a variety of brushless motors and violent fan scenarios.2.Maximum 5A current output, strong drive high-power DC brushless motor, excellent performance 3.PWM precision speed control technology, smooth speed adjustment, to achieve a balance between high efficiency heat dissipation and silence 4.Exquisite product appearance, simple and convenient operation, suitable for DIY modification requirements5. Designed for high-performance equipment, stable operation without heating, prolonging the service life.ParameterWorking voltage: DC8-24VUsing current: 5A (12V60W, 24V120W)Maximum adjustable duty cycle: 0-100% PWM 5V square wavePWM frequency: 22KHzWork itself power consumption: 20mAStatic current: 0mA (power off state)Potentiometer opening: 7mm, handle length 15mmThis speed control module is suitable for:DC brushless 4-wire/5-wire cooling fan or DC brushless motor with PWM/CLK signal control input (e.g., computer mainframe cooling fan), also a 0-100% duty cycle adjustable square wave signal generator.Product Description:This product is a DC brushless motor speed signal output control module, the minimum input voltage of 6V maximum 28V, can work stably between 8-24V, the speed knob built-in power switch, adjust the minimum in the downward adjustments to hear the sound of the da cut off the input power supply, the module and the fan stops supplying power, the switch allows the passage of a maximum current of 5A;1. power input increased by a XH2.54 socket, can be power input, but also when the power output to other peripheral equipment power supply2. Increase a 2510-4P cooling fan socket, and the terminal at the same time the speed controlPackage includePWM speed controller*1
