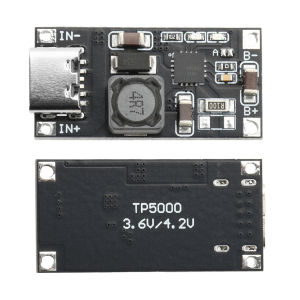

TP5000 4.2V/3.6V 1A Lithium Li-ion Battery Charging Board Charger Module Charge Management Power Supply Module Type-C DC 4.5-9V

TP5000 4.2V/3.6V 1A Lithium Li-ion Battery Charging Board Charger Module Charge Management Power Supply Module Type-C DC 4.5-9VFeatures:1. Precious metal ceramic capacitors, stable performance far more reliable than tantalum capacitors2. Copper belt high current inductor, low loss and low interference volume compact heat dissipation good3. Single-sided mounting design, thickness of only 4 mm, easy to install and heat sinks4. Switching buck mode, high efficiency and low heat, 1A charging input only 0.7A5. With overheating protection, dual-color indicator light full of self-stop safer and more intuitiveParameter:Product name: TP5000 lithium battery charging boardInput: DC 4.5-9V (recommended not to exceed 7V)Output voltage: 4.2V/3.6V, plus or minus 1% jumper selectionOutput current: default 1A, can be customized 0.5-2A, greater than 1.5A need to add coolingVolume: 30mm15mm6mm, single side mount reflow solderingDescription:TP5000 lithium-ion batteries, lithium iron phosphate batteries, 1A current 4.2/3.6V, suitable for charging lithium-ion batteries and lithium iron phosphate batteries, full self-stop, red and green dual-light indicator. Switching buck mode, higher efficiency than linear charging circuit, and much less heat. Charging current 1A, charging at constant current throughout the charge to maintain 1A, without additional heat dissipation, reducing the impact of heat on the charging current, reducing the charging time. Optional common lithium ion lithium polymer battery or lithium iron phosphate battery, only one jumper is needed to change the setting.4 terminals, 2 inputs, 2 batteries, another with inline LED soldering position.Usage:1. Li-ion batteries only need to be connected to the 5V power supply, the output B+, B- connected to the battery. Charging in the red light, full of self-stop, charging is complete, the green light.2. For lithium iron phosphate battery 3.6V, just soldering iron weld open between the two pads tin point. Power supply battery connection method as mentioned above remains unchanged. If you need to change back to charge 4.2V lithium batteries, the use of pads dipped in solder can be connected back.Package included:TP5000 4.2V/3.6V 1A Lithium Li-ion Battery Charging Module1TP5000 5V 3A Lithium Li-ion Battery Charging Board Charger Module Charge Management Power Supply Module Type-C DC 4.5-12VFeatures:1. Type-C interface design, support 4.5-12V wide voltage input more flexible2. TI special BQ25606 chip, high-efficiency, stable and reliable voltage reduction program3. Maximum 3A charging current, fast and safe charging for 3.7V lithium battery4. Dual protection mechanism to prevent overcharging and over-discharging of the battery more secure5. On-board dual-color LED indicator, charging status at a glance more intuitiveParameter:Product name: 3A lithium battery charging moduleModule type: buck power supplyInput voltage: DC 4.5-12VCharging cutoff voltage: 4.2V 1%MAX charging current: 3ABattery over-discharge protection voltage: 2.8VBattery overcharge protection voltage: 4.2-0.05VModule interface: pad (can also be connected to the 2.54mm row of pins)Description:This module adopts TI special battery charging chip BQ25606 buck scheme, high output efficiency, stable performance, with overcharge and overdischarge protection. type-C interface input, input voltage range 4.5-12V, output current MAX up to 3A, very suitable for nominal 3.7V lithium battery charging. The board contains a red LED charging indicator, blue LED status indicator, you can visualize the charging status of the module and battery.Package included:TP5000 5V 3V Lithium Li-ion Battery Step down Charging Module1
