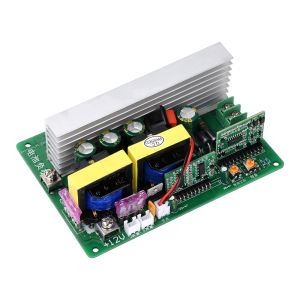

500W DC-AC Inverter 12-14.5V to 220V Sine Wave Step-Up Boost Converter with Switch and Fan Port Power Supply Module Transformer

Features:1. Continuous 300W peak 500W, easily driven by high-power appliances2. Built in multiple safety protections to prevent the risk of low voltage overcurrent and short circuit3. Reserved temperature control fan interface, automatic heat dissipation at 65 ℃ without overheating4. Comes with a convenient power switch, one click control without the need for repeated plugging and unplugging5. Widely used in multiple scenarios, compatible with projectors, rice cookers, and other electrical appliancesProduct Parameters:Product Name: DC-AC Step up Transformer ModuleInput voltage: DC 12-14.5VOutput voltage: AC 220VFrequency: 50HzInput current:>30AOutput power: continuous 300W, 500W Max (with fan cooling can reach 500W)Fan interface: Reserved with/without temperature control fan interfaceTemperature controlled fan opening temperature: around 65 ℃Application scenarios: Supports fans, fish tank water pumps, desktop computers, electric scooter charging, televisions, projectors, electric blankets, small hand drills, rice cookers, etc. (any electrical appliance within the specified wattage can be used)Wiring operation:Input: Connect to DC 12V-14.5V, positive and negative poles cannot be reversed, input line should not be less than 6 square meters, battery should be above 50AOutput: 220V AC powerNotes:1. The input of this product can only be connected to a 12-14.5V battery, which can be converted to a 220V power supply. The positive and negative poles of the input cannot be reversed. The input and output must be connected first and checked for accuracy before connecting the battery to power on2. If the output power exceeds 300W, a fan must be added for heat dissipation3. The input cable must be at least 6 square meters, the battery must be at least 50A, and a fan must be added for cooling in order to sustain 500W. Without cooling, the power consumption should be within 300WShipping List:Module x1
