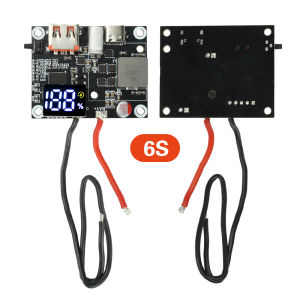

diymore | 65W 3S/4S/5S/6S Power Bank Fast Charging Mobile Power Module Circuit Board DIY Motherboard Bidirectional Type-C+USB Interface

Features:1. Dual interface design, Type-C+USB-A， Compatible with various device charging needs.2. Support multi protocol fast charging, intelligent recognition, and improve charging efficiency.3. The digital display shows the battery level in real-time, and the remaining battery level is clear at a glance.4. Adapt to flexible configuration of 3-6S batteries to meet different power supply schemes.5. High power output, supports mainstream protocols by default.Parameters:Specifications: 3S, 4S, 5S, 6SDefault output power: 65WDefault display for digital tube battery levelInterface: Type-C+USB AType-A port:Input protocol: NoneOutput protocols UFCS/PE1.1/PE2.0/QC3+/QC3.0/QC2.0/AFC/FCP/SCP/SFCPType-C port:Input protocol: PD3.1/UFCS/AFC/FCP/SCP/SCPOutput protocol: PPS/PD3.1/UFCS/PE1.1/PE2.0/QC3+/QC3.0/QC2.0/AFC/FCP/SCP/SFCPProduct size: 50x40x9.5mmApplication scenario: Suitable for DIY use of mobile power banks and power banks.Attention: Connect the positive and negative poles of the battery to B+and GND. Do not connect the positive and negative poles incorrectly. The battery supports 2-7 strings. If 7 strings of batteries are connected, only lithium iron phosphate can be connected. 2-6 strings can be connected to lithium batteries or lithium iron phosphate batteries. A protective board corresponding to the number of strings must be equipped separately. Without a protective board, the main board cannot be connected, otherwise the battery will be charged and damaged. If setting 100W, it is best to add a heat sink and fan for active heat dissipation! At present, we only offer 3 strings, 4 strings, 5 strings, and 6 strings in stock. For others, you can modify the resistors yourself. Little novices should be cautious and make their own modifications. Customization is available for large quantities.Package Include:1X module
