AD8361 RF Power Meter DC 2.7-5.5V True RMS Detect Module 0.1-2.5GHz AM Detector 25K-100MHz RF Wideband Amplifier HF AM DC 1-50V

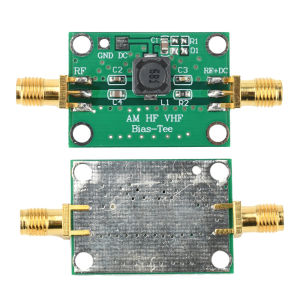

25K-100MHz RF wideband amplifier moduleFeatures:1. The feeding circuit of the broadband amplifier is affected by the parasitic capacitance parameter at high frequencies, and its performance drops sharply. Therefore, BiasTee needs to be adopted for feeding2.BiasTee is composed of ultra-wideband, near-ideal, and resonant high-frequency inductors and capacitors3. Dc blocking capacitor: Blocks DC, preventing DC voltage from leaking into subsequent circuits or testing instruments4. High-frequency inductor: Isolates AC information to prevent high-frequency signals from leaking into the power supply system5. The driving current required for the laser diode is injected through the DC terminal of the biaser. Communication data is injected through the RF terminalParameters:Operating frequency: 25k-100MHzInsertion loss: Working voltage: DC 1-50VMaximum working current: Product size: 52236.5mmPackaging list:  RF broadband amplifier Module 1----------------------------------------------------------------------------------------------------------------AD8361 0.1-2.5GHz RF Power Meter Features:1. Applicable to high-frequency receiver and transmitter signal chains with a maximum frequency of 2.5 GHz2. An external filter capacitor can be added to increase the average time constant3. The output is a linear response DC voltage, with a conversion gain of 7.5V/V root mean square value4. It only requires a single power supply of 2.7- 5.5V, a power decoupling capacitor and an input coupling capacitor to operate5. It is used for true power measurement of simple and compound waveforms, and is particularly suitable for measuring signals with high peak factors (peak value - root mean square ratio)6. It has three working modes: reference voltage source grounding mode, internal reference voltage source mode, and providing reference voltage source modeParameters:Frequency range: 0.1-2.5GHzMaximum input: 700 mV rms, 10 dBm (50 Ω resistor) ±0.25 dB Linear response (up to 2.5 GHz)Single power supply: DC 2.7- 5.5VLow power consumption: 3.3 mW (3 V)Fast turn-off mode: Below 1 μAProduct size: 4224*6.7mmThe AD8361 has three working modes and supports various analog-to-digital converter requirements:1. In the reference voltage source grounding mode, the source is zero.2. The internal reference voltage source mode can bias the output to 350 mV above the ground level.3. Provide a reference voltage source mode, which can bias the output to VS/7.5Packaging list:  RF Power meter module *1
