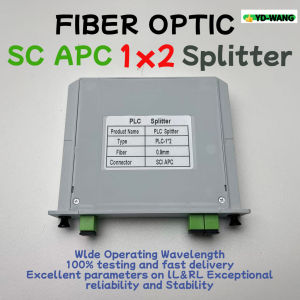

SC APC Fiber Optic Splitter 1x2 Optical PLC Plug-in Type Optic Splitter PLC CATV Network Optical Fiber Connection Splitter

Product Description This series of optical splitters features excellent performance and is suitable for various optical communication scenarios. It has low insertion loss, low polarization-dependent loss (PDL), high return loss, uniform power splitting, a compact design, a wide operating wavelength range (1260–1650 nm), and an operating and storage temperature range of -40°C to 85°C. It also demonstrates superior environmental and mechanical stability and complies with Telcordia GR-1221 and GR-1209 standards. Available specifications include 1x4, 1x8, 1x16, 1x32, etc. The maximum insertion loss (S/P) is 7.4/7.2 dB, 10.7/10.5 dB, etc., respectively; the maximum loss uniformity is 0.6–1.7 dB; the minimum return loss (S/P) is 50/55 dB; the maximum PDL is 0.2–0.3 dB; and the minimum directivity is 55 dB. The pigtail length is 1.2 (±0.1) m or can be customized. The fiber type is SMF-28e or can be customized as needed. The wavelength-dependent loss is 0.2–0.3 dB, the temperature stability (-40–85°C) is 0.3–0.4 dB, and the package size (L x W x H) is 40x4x4 mm, providing a reliable solution for efficient and stable transmission in optical networks.
