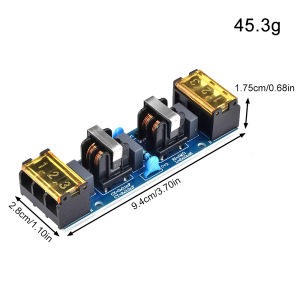

Aideepen | 6A/25A Power Filter Board EMI High Frequency Two-Stage Power Supply Low Pass Filter Module Power Management EMI Filter

Description:1. Made from premium materials, ensuring quality assurance2. Widely used in precision measuring instruments, building automation, precision machinery, elevators and lifting equipment, automation systems, office calculators and similar devices, servo systems, inverter equipment, variable frequency drives, lighting systems, information and communication equipment, UPS switching power supplies, automotive electronics, and other devices3. Functions as a reactance-type low-pass filter4. Delivers significant filtering performance5. Offers stable operationProduct Description:The power supply EMI filter is a reactance-type low-pass filter installed at the power input of electronic equipment. It suppresses noise interference transmitted through the mains power line while also preventing high-frequency interference signals generated by the electronic equipment itself from entering the mains grid and affecting other electronic devices. Therefore, EMI filters have become essential components in electronic equipment.Power supply noise constitutes a form of electromagnetic interference, with its conducted noise spectrum generally ranging from 10kHz to 30MHz, and potentially reaching up to 150MHz. Based on propagation direction, power supply noise can be categorized into two primary types: external interference introduced through the power input line, and noise generated by electronic equipment that is conducted outward via power lines. This indicates noise operates as a bidirectional interference signal, where electronic equipment functions both as a target of noise interference and as a noise source itself. From the perspective of formation characteristics, noise interference is categorized into two types: differential-mode interference and common-mode interference. Differential-mode interference refers to noise between two power lines (abbreviated as line-to-line). Common-mode interference, conversely, refers to noise between two power lines and ground (abbreviated as line-to-ground). Therefore, electromagnetic interference (EMI) filters must comply with electromagnetic compatibility (EMC) requirements and function as bidirectional RF filters. They must filter out external electromagnetic interference introduced through AC power lines while simultaneously preventing the device itself from emitting noise interference externally, thereby avoiding disruption to other electronic equipment operating in the same electromagnetic environment. Additionally, EMI filters suppress both differential-mode and common-mode interference.Precautions:- Select EMI filters based on their rated voltage, current, and withstand voltage- Install EMI filters at the power input point to minimize radiated interference- Use dual-insulated cables for EMI filter connections to eliminate some high-frequency interference signalsInput and output lines of the EMI filter must not run parallel; maintain sufficient separation to ensure filter functionality.The E point of the EMI filter must make good contact with the chassis and be properly grounded.Shipping List:Module X1
