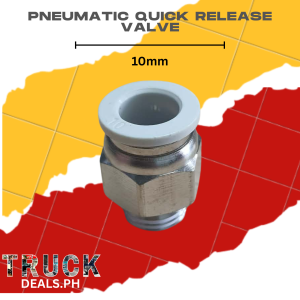

Pneumatic Quick Release Valve

A Pneumatic Quick Release Valve is a device used in pneumatic (compressed-air) systems to exhaust air from an actuator very quickly instead of letting it travel back through the control valve. This makes cylinders and other air-powered devices move faster.⚙️ How it worksNormally, when air leaves a pneumatic cylinder, it flows back through the control valve and tubing. That path can slow down the exhaust.A quick release valve solves this by:Allowing air to enter the cylinder normally.When the air supply stops, the valve opens a direct exhaust port to the atmosphere.Air escapes immediately near the cylinder, reducing back pressure.➡️ Result: Faster piston return or extension.🔧 Main PartsInlet port – receives compressed airOutlet port – connected to the cylinderExhaust port – releases air directly to atmosphereInternal diaphragm or piston – switches airflow direction📦 Where it is usedQuick release valves are common in:Industrial automation machinesPackaging machinesPneumatic cylindersRobotics systemsClamping and pressing machines🚀 Key AdvantagesFaster cylinder movementIncreased machine cycle speedReduced pressure loss in return linesImproved system efficiency🧠 Simple ExampleImagine a pneumatic cylinder pushing a product on a conveyor.

With a quick release valve installed near the cylinder, the air inside the cylinder dumps out instantly, allowing the piston to retract much faster.✅ In short:

A pneumatic quick release valve is used to quickly vent compressed air from a pneumatic actuator to speed up its operation.
