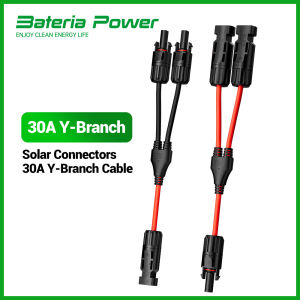

BateriaPower A Pair Of Solar Connector Y-type One-To-Two-To-Four Combiner Waterproof PV Male And Female Solar Panel Cable Connector MC4
This Y Style compatible Solar Cable Connector Set is a perfect solution to parallel connect multiple panels together in a solar field, and is typically used in parallel applications.1. Compatible Solar Connector2. Double seal rings for better waterproof effect3. Compatible with PV cables with different insulation diameters4. It can be used in harsh environment5. With excellent aging resistance and UV endurance6. Created seal, design of dust proof7. Load capability with big current and high voltage8. Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument9. Strong pulling force capability10. Resistance of extra high & low temperature and fireproof11. Lower contact resistanceModel name: Y cableInsulation material: PPORated current: 30ARated voltage: 1000V (TUV)Test voltage: 6kV (50Hz, lmin)Typical contact resistance: ≤5mWContact material: pure copperProtection level: IP68Safety level: llFlame grade: UL94-V0Material RTl: 110℃Ambient temperature range: -40℃ to +85℃Main cable specification: 6MM2 (AWG10)Branch cable specifications: 4MM2 (AWG12)Insertion force: ≤50NWithdrawal force: ≥50N
Bateria Power-PH
