NEEBRC 2g 4.3g 5g 8g 12g 21g Digital Micro Servo for RC Plane Drone Mini Car Helicopter Fixed-wing Wltoys K969 K989 XKS X450

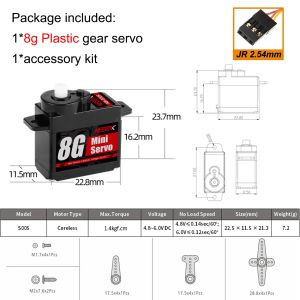

NEEBRC 2g 4.3g 5g 8g 12g 21g Digital Micro Servo for RC Plane Drone Mini Car Helicopter Fixed-wing Wltoys K969 K989 XKS X450 Features:1.Quick response high performance digital standard.2.Low noise and long service life.3.Small volume and large torque.4.Suit for RC plane helicopter Mini car boat model. Specifications:Item name:NEEBRC NB-M005Quantity: 1pcsOperating Voltage : 4.8~6V DCMax. Torque : 0.3kgf·cm/0.75kgf·cmNo Load Speed : 3.7V≦0.08sec/60° ; 4.2V≦0.06sec/60°Stall Current:3.7V≦320mA;4.2V≦350mAConsumption Current* (No Load):3.7V ≦50mA ;4.2V≦60mAMax. Operating Travel Angle:180° ±10° (500~2500 us)Dead Band Width: ≤ 1usMechanical Limit Angle: 360°Communication Interface: PWMMotor Type: Coreless motorCase Material: ABSGear Set Material : Plastic/Metal gearWeight: 3.3g/5.5gSize: 16.7 × 8.2 × 17mmLength of Connector cable:JR 200±5mm (exposed without plug)Item name: NEEBRC NB-S002Quantity: 1pcsOperating Voltage : 4.8~6V DCMax. Torque : 0.8kgf·cmNo Load Speed : 3.7V≦0.12sec/60° ; 5.0V≦0.10sec/60°Stall Current:3.7V≦550mA;5.0V≦650mAConsumption Current* (No Load):3.7V ≦80mA ;5.0V≦100mAMax. Operating Travel Angle:180° ±10° (500~2500 us)Dead Band Width: ≤ 1 usMechanical Limit Angle: 360°Communication Interface: PWMMotor Type: Coreless motorCase Material: ABSGear Set Material : Plastic gearWeight: 5.1gSize: 27.4 × 8.5 × 22.3mmLength of Connector cable:JR 200±5mm (exposed without plug)Item name: NEEBRC NB-S002Quantity: 1pcsOperating Voltage : 4.8~6.0V DCMax. Torque : 4.8V≥0.58kgf·cm ; 6.0V≥0.85kgf·cmNo Load Speed : 4.8V≦≤0.15sec/60° ; 6.0V≦≤0.12sec/60°Stall Current:4.8V≦500mA;6.0V≦550mAConsumption Current* (No Load):4.8V ≦80mA ;6.0V≦90mAMax. Operating Travel Angle:180°±10°(500~2500μs)Dead Band Width: ≤ 1 usMechanical Limit Angle: 360°Communication Interface: PWMMotor Type: Coreless motorCase Material: ABSGear Set Material :Metal gearWeight: 6.9 gSize: 27.4 × 8.5 × 22.3mmLength of Connector cable:JR 200±5mm (exposed without plug)Item name: NEEBRC NB-S003Quantity: 1pcsOperating Voltage : 4.8~6.0V DCMax. Torque : 0.9kgf·cm/1.4kgf·cmNo Load Speed : 4.8V≤0.08sec/60°; 6.0V≤0.07sec/60°Stall Current:4.8V≦800mA;6.0V≦950mAConsumption Current* (No Load):4.8V ≦100mA ;6.0V≦110mAMax. Operating Travel Angle:90°±10°(1000~2000μs)Dead Band Width: ≤ 1 usMechanical Limit Angle: 210°Communication Interface: PWMMotor Type: Coreless motorCase Material: ABSGear Set Material : Plastic/Metal gearWeight: 5.9gSize: 20 × 11.5 × 21.3mmLength of Connector cable:JR200±5mm (exposed without plug)Item name: NEEBRC NB-S005Quantity: 1pcsOperating Voltage : 4.8~6.0V DCMax. Torque : 4.8V≥1.10kgf·cm ; 6.0V≥1.40kgf·cmNo Load Speed : 4.8V≤0.14sec/60°; 6.0V≤0.12sec/60°Stall Current:4.8V≦680mA;6.0V≦780mAConsumption Current* (No Load):4.8V ≦130mA ;6.0V≦150mAMax. Operating Travel Angle:180°±10°(500~2500μs)Dead Band Width: ≤ 3usMechanical Limit Angle: 360°Communication Interface: PWMMotor Type: Coreless motorCase Material: ABSGear Set Material : Plastic gearHorn Gear Spline:28T/Φ3.90mmWeight: 7.2 gSize: 26.5 × 11.5 × 22.8mmLength of Connector cable: JR 200±5mm (exposed without plug)Item name: NEEBRC NB-S006MQuantity: 1pcsOperating Voltage : 4.8~6.0V DCMax. Torque : 4.8V≥1.30kgf·cm ; 6.0V≥1.80kgf·cmNo Load Speed : 4.8V≤0.13sec/60°; 6.0V≤0.11sec/60°Stall Current:4.8V≦700mA;6.0V≦800mAConsumption Current* (No Load):4.8V ≦150mA ;6.0V≦170mAMax. Operating Travel Angle:180°±10°(1000~2000μs)Dead Band Width: ≤ 3usMechanical Limit Angle: 360°Communication Interface: PWMMotor Type: Core motorCase Material: ABSGear Set Material : Metal gearHorn Gear Spline:40T/Φ4.85mmWeight: 13.5 gSize: 27.3 × 12 × 23mmLength of Connector cable: JR 250±5mm (exposed without plug)Item name: NEEBRC NB-S007MQuantity: 1/5/10/20pcsOperating Voltage : 4.8~6.0V DCMax. Torque : 4.8V≥3.80kgf·cm ; 6.0V≥4.20kgf·cmNo Load Speed : 4.8V≤0.10sec/60°; 6.0V≤0.12sec/60°Stall Current:4.8V≦1500mA;6.0V≦1800mAConsumption Current* (No Load):4.8V ≦200mA ;6.0V≦210mAMax. Operating Travel Angle:180°±10°(1000~2000μs)Dead Band Width: ≤ 5usMechanical Limit Angle: 360°Communication Interface: PWMMotor Type: Core motorCase Material: ABSGear Set Material : Metal gearWeight: 21 gSize: 29.6 × 13.2 × 40mmLength of Connector cable: JR 250±5mm (exposed without plug)Package included:1 * 2g/4.3g/5g/8g/12g/21g Digital Servo1 * Servo Arm Accessories
