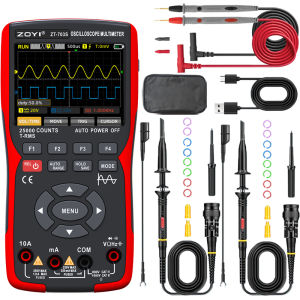

ZOYI | ZOYI DDS ZT-703S Automotive 3 in 1 Oscilloscope 50MHz Dual Channel Digital Multimeter Signal Generator Handheld Diagnostic Tool

【Excellent Design】ZT-703S Handheld Oscilloscope with 3.5-inch IPS Full View Color Display. One-button automatic measurement, time base calibration, data saving, data export, with language selection, shutdown time setting, adjustable backlight, data transmission port, signal generator provides a variety of frequencies and waveforms output, memory and other functions.【Oscilloscope Mode】Dual channel handheld oscilloscope, 50MHz bandwidth, real-time sampling rate 280MSa/s, record depth 128kb, maximum measurement voltage ±400V, automatic measurement function, trigger function auto/normal/single, 20mv/div-10v/div vertical sensitivity, 8/10ns/div-20S/div horizontal scanning range, 20ppm time base accuracy, support waveform image storage and export.【Multimeter Mode】25000 Counts. AC Voltage: 0-750V, DC Voltage: 0-1000V, DC/AC Current: 0-10.0A, Resistance: 0-250.0MΩ, Capacitance: 0-99.99mF, Frequency: 0-999.9kHZ, Diode, Continuity Measurement. An ideal multi-function meter for electrical testing instruments in home, automotive,circuit systems, and can also be used for measurement and detection digital multimeter of sockets, switches, lights, low-voltage circuits.【Signal Generator Mode】The maximum waveform output frequency can reach 1kHz and a step of 1Hz, and can output six waveforms including sine, square, triangle, full, half, sawtooth wave.【Safety Overload Protection】Multimeter mode compliant with CTA III 1000V ,oscilloscope mode CTA II 600V safety levels, meeting CE certification requirements, A/D high sampling conversion, 600mA-10A dual ceramic fuse to, ABS+TPE dual injection molding process, sturdy and durable, protecting from.
