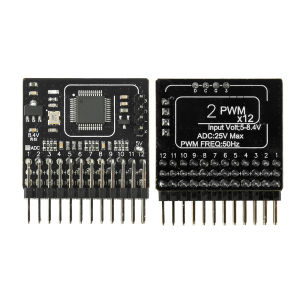

diymore DC 5-12V 12 Channel Pwm Adapter Board Signal Conversion Module Suitable For Fpv Unmanned Aerial Vehicle Receiver

Parameter: -Only compatible with CRSF protocol receivers; -12 PWM outputs (firmware above ELRS 3.0.0 can output 12 proportional channels); -CRSF signal acquisition LED indication; -PWM output frequency 50Hz; -PWM port supports high-voltage servos; -BEC power supply range 5-12V (determined by jumper); -Support maximum 6S battery telemetry voltage (RxBt) feedback; -Size: 32mm × 28mm (excluding needle arrangement); -Can be stacked and combined with ELRS2.4/915 receiver to form a 12 channel receiver; -Connect the receiver TXRX port to the adapter board TXRX through a serial port (please check if the receiver line sequence corresponds to the adapter board line sequence and if it can be plugged in); Function Description: Supports 12 channel PWM output Support 8.4V high-voltage cabin machine Support maximum 6S battery voltage feedback Support ELRS3.0 full proportional channel Applicable scenarios: Suitable for scenarios that require multi-channel PWM signal control, such as aircraft, model remote control systems, FPV crossovers, etc. It is particularly suitable for high-performance model applications that use CRSF or ELRS protocol receivers and need to be extended to 12 channels. It can be stacked with receivers to save space and improve integration.Package Include: 1X adapter boardNote: This is only an adapter board and does not include the receiver shown in the picture.
